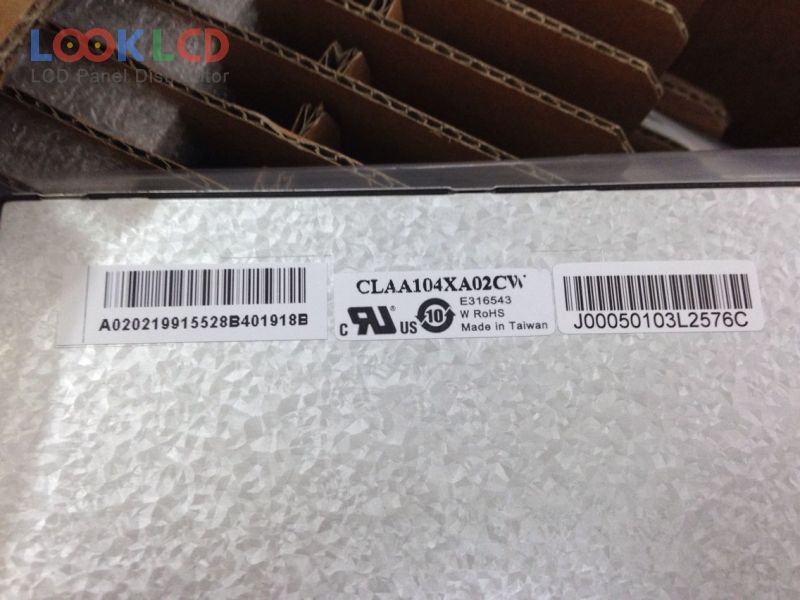

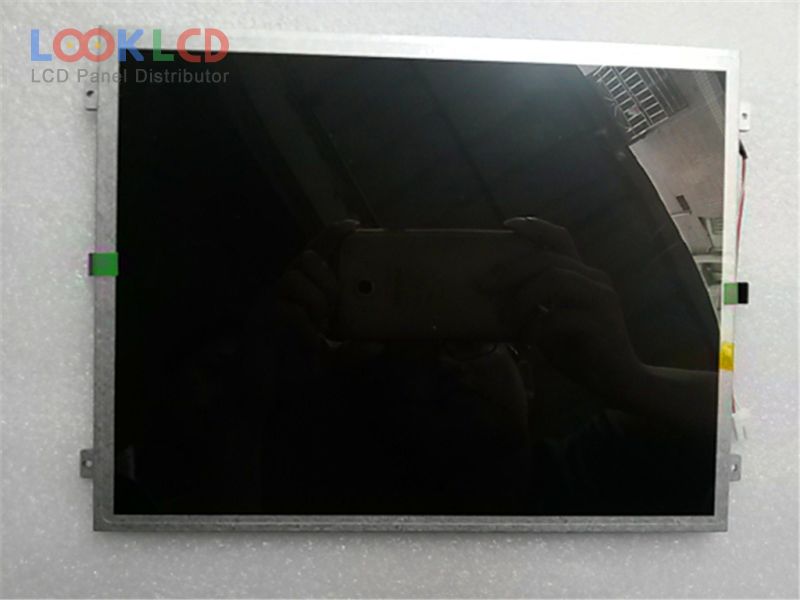

| Artikelnummer | CLAA104XA02CW |
| Marke | CPT |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CPT |
| Panel-Modell | CLAA104XA02CW |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 211.2×158.4 mm |
| Umriss | 236×174.3×7.4 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193147% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 75/75/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S13PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| AA104VC02 | Mitsubishi | 10.4 | 640×480 |
| G150XTN06.2 | AUO | 15.0 | 1024×768 |
| G185XW01 V2 | AUO | 18.5 | 1366×768 |
| LM-CG53-22NDK | SANYO | 10.4 | 640×480 |
| LQ060B3DW01 | SHARP | 6.0 | 768×128 |
| LQ064V3DG05 | SHARP | 6.4 | 640×480 |
| LQ121X3LG02 | SHARP | 12.1 | 1024×768 |
| LT084AC27900 | TOSHIBA | 8.4 | 800×600 |
| LTA121B860F | TOSHIBA | 12.1 | 800×600 |
| MD640.400-54 | FINLUX | 9.1 | 640×400 |
