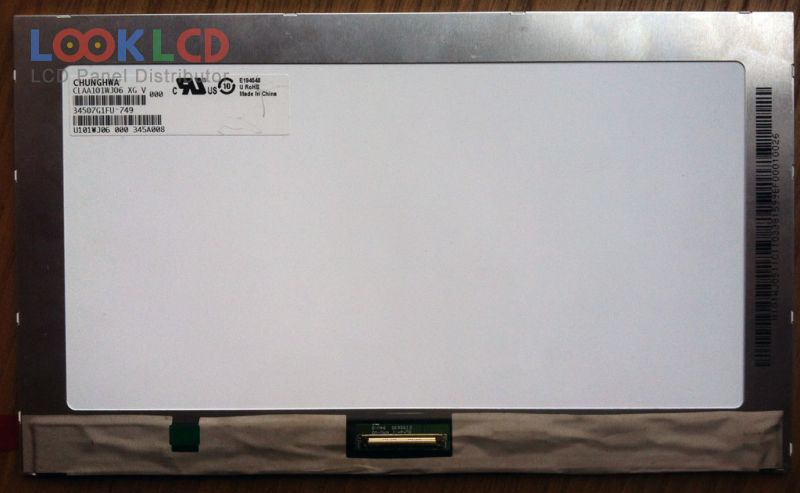

| Artikelnummer | CLAA101WJ06 |
| Marke | CPT |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CPT |
| Panel-Modell | CLAA101WJ06 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | HFFS, Normally Black, Transmissive |
| aktiver Bereich | 223.341×125.568 mm |
| Umriss | 234.53×138.97×4.4 mm |
| Oberfläche | Hard coating |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S6PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA102NA0ACW | CPT | 10.2 | 1024×600 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| CLAA140WB01A | CPT | 14.0 | 1366×768 |
| CLAA154WB08A | CPT | 15.4 | 1280×800 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| CLAA170EA07Q | CPT | 17.0 | 1280×1024 |
| CLAA170ES01E | CPT | 17.0 | 1280×1024 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| BF097XN | Innolux | 9.7 | 1024×768 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097X02-SLQ1 | LG Display | 9.7 | 1024×768 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| N070ICE-GB1 | Innolux | 7.0 | 800×1280 |
| P070ACB-DB1 | Innolux | 7.0 | 600×1024 |
