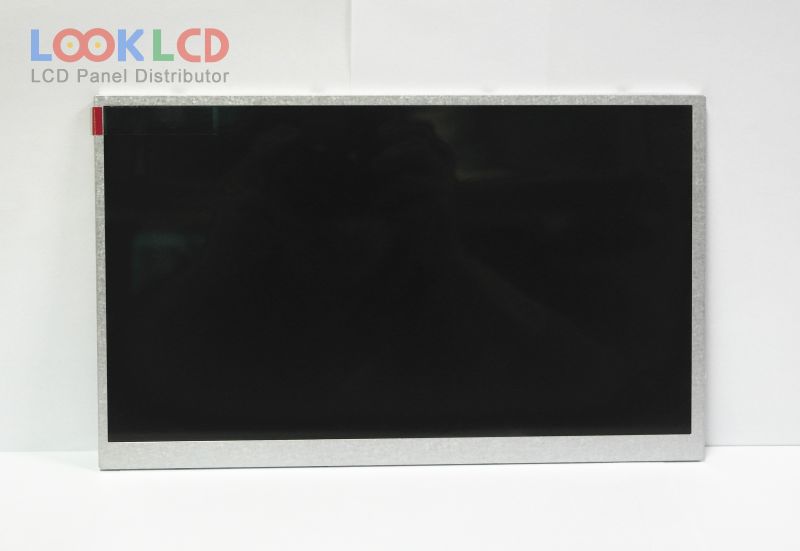

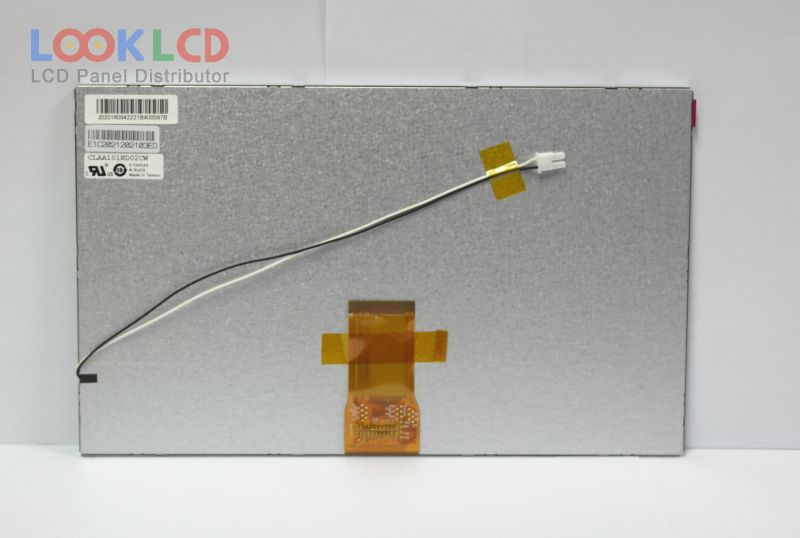

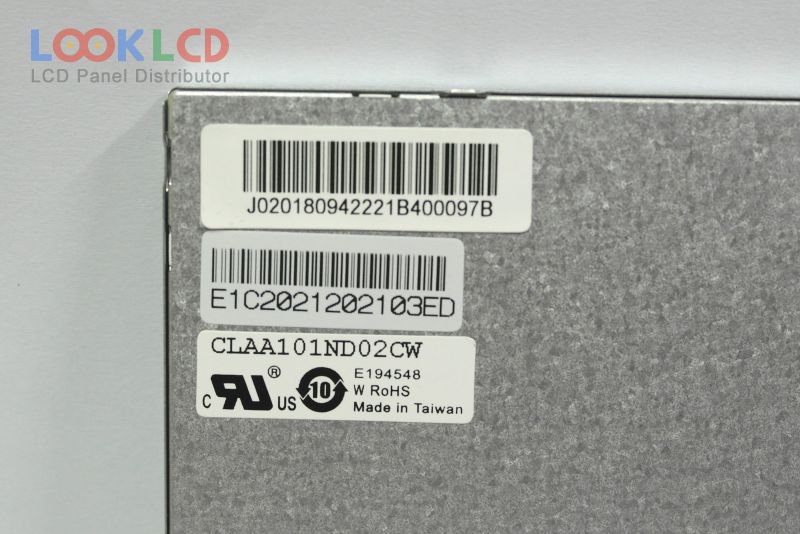

| Artikelnummer | CLAA101ND02CW |
| Marke | CPT |
| Größe | 10.1 |
| Anwendung | DPF |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | |
| CR | 600:1 |
| Farben | 262K/16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CPT |
| Panel-Modell | CLAA101ND02CW |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.72×125.28 mm |
| Oberfläche | Antiglare |
| Helligkeit | |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 50 pins |
| Anwendung | DPF |
