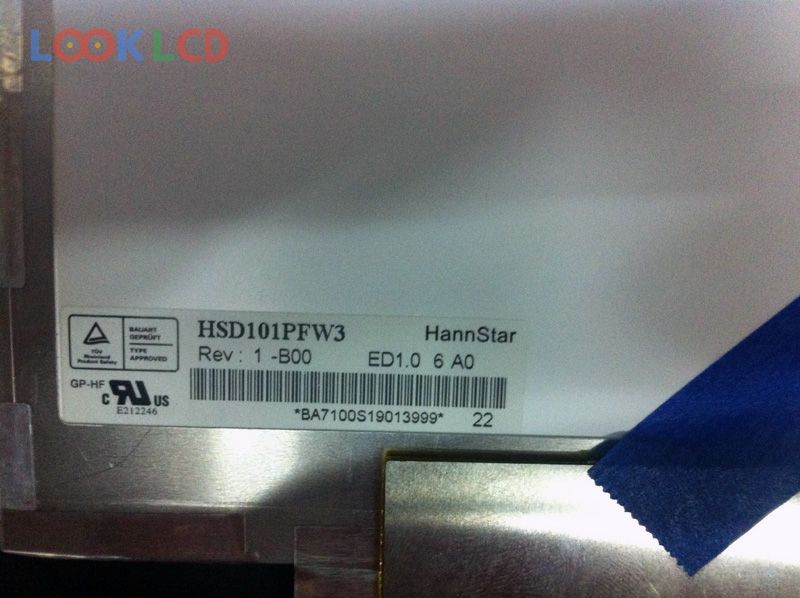

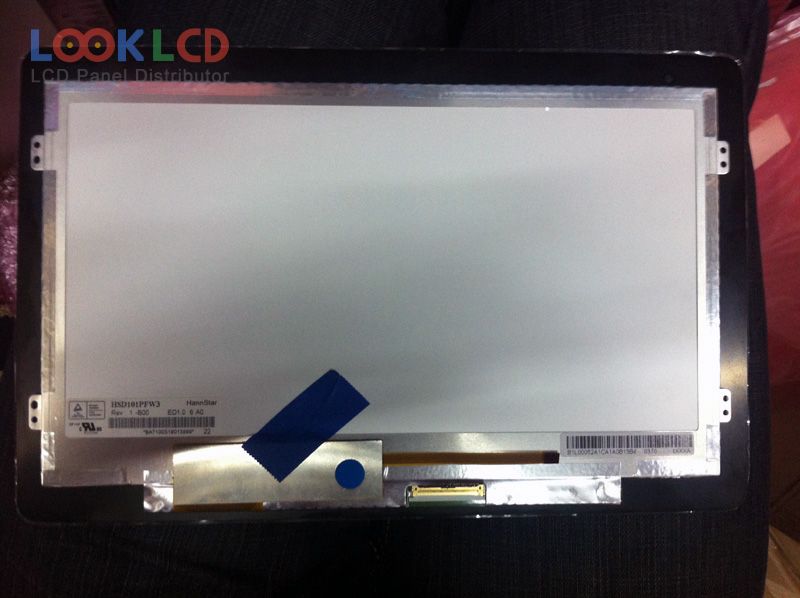

| Artikelnummer | HSD101PFW3-B00 |
| Marke | HannStar |
| Größe | 10.1 |
| Anwendung | DPF |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | HannStar |
| Panel-Modell | HSD101PFW3-B00 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.72×125.28 mm |
| Umriss | 243×146.5×3.6 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 4/12 (Typ.)(Tr/Td) |
| Blickwinkel | 80/70/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | DPF |
