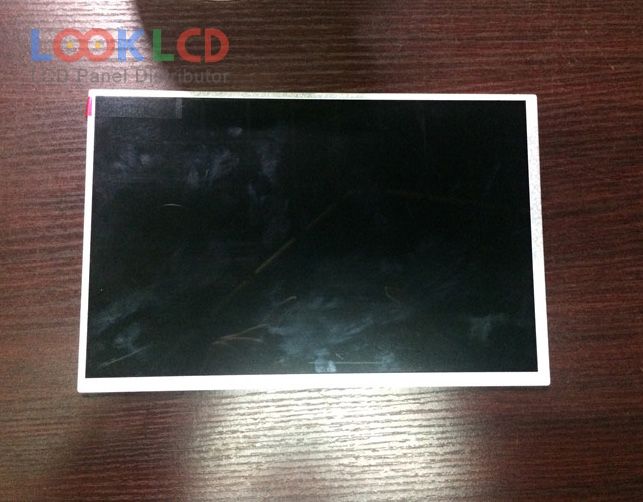

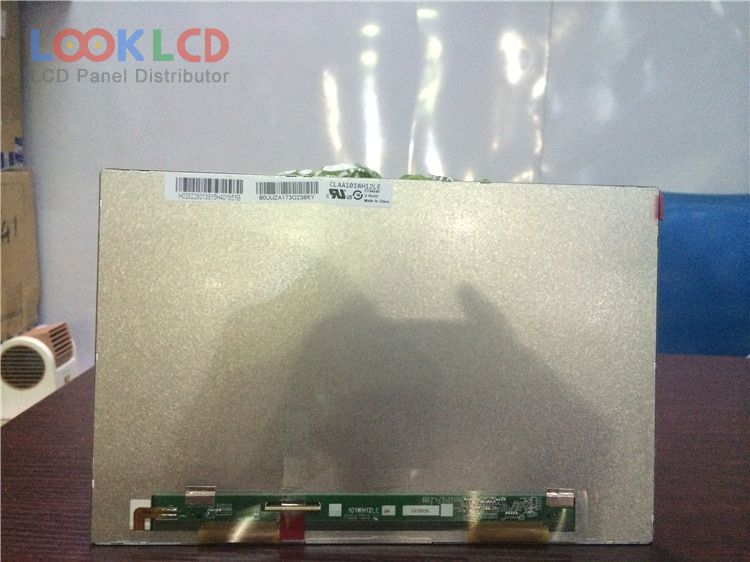

| Artikelnummer | CLAA101WH12 LE |
| Marke | CPT |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 600:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CPT |

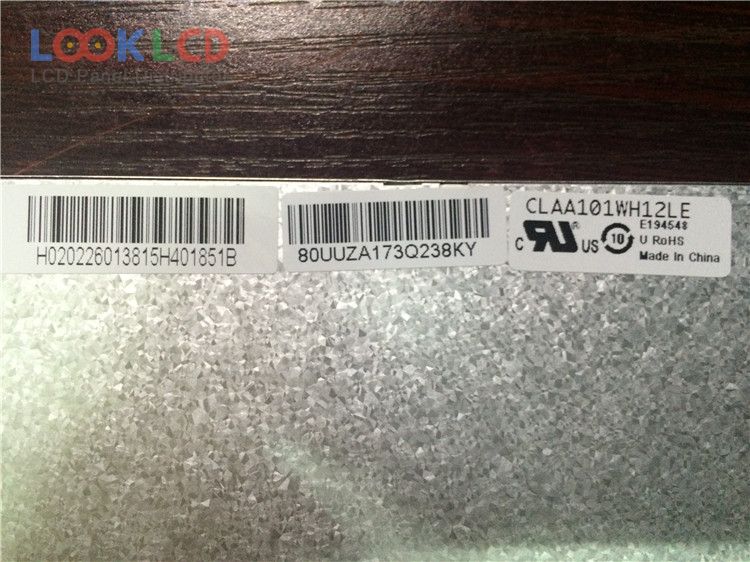

| Panel-Modell | CLAA101WH12 LE |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 216.96×135.6 mm |
| Umriss | 222.46×149.1×4.96 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S12PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3/11/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Anwendung | PAD |
