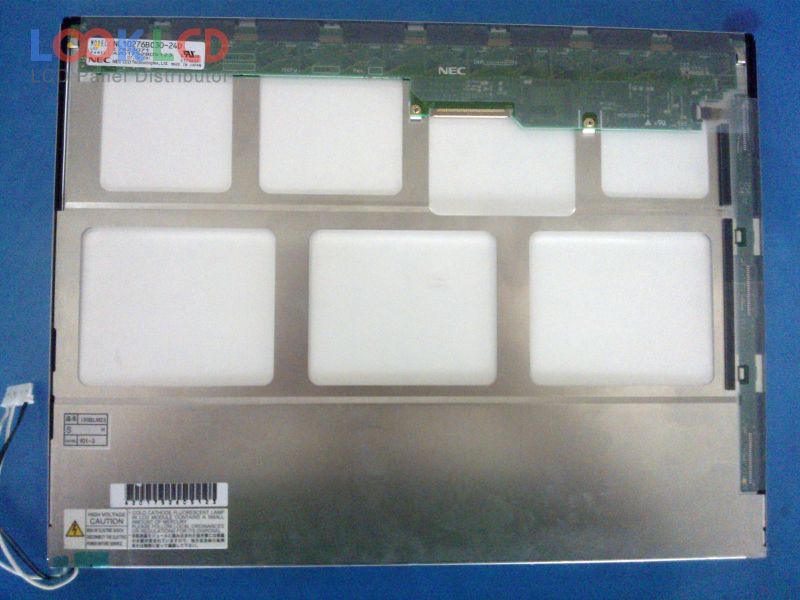

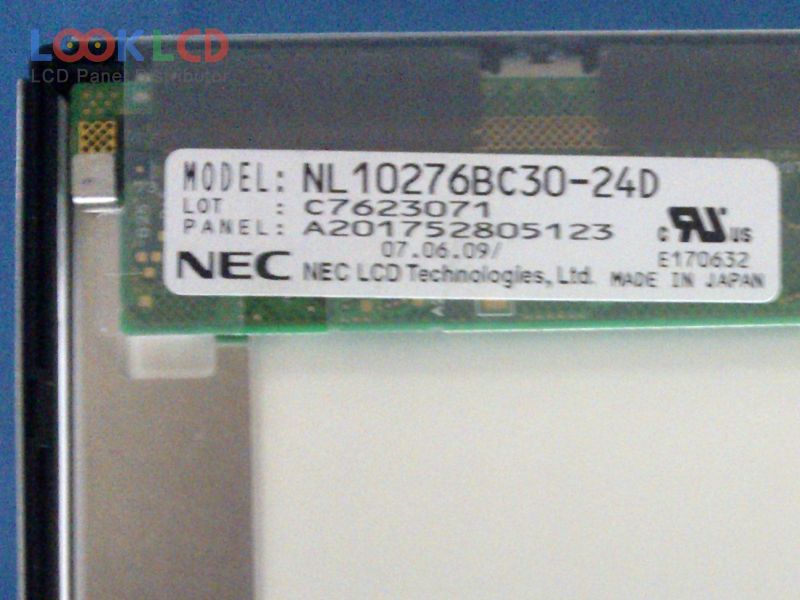

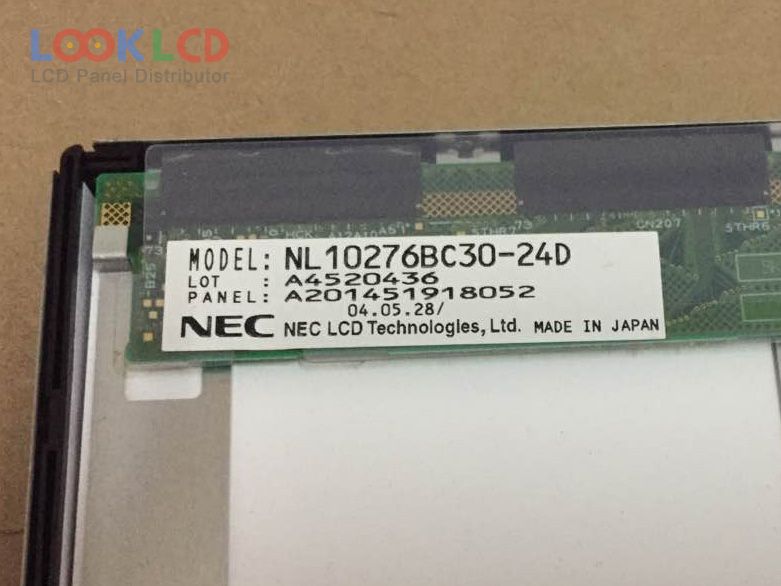

| Artikelnummer | NL10276BC30-24D |
| Marke | NLT |
| Größe | 15.0 |
| Anwendung | NBPC |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 320 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL10276BC30-24D |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 304.128×228.096 mm |
| Umriss | 317.3×242.2×10 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Clear, Hard coating (2H), Antireflection |
| Helligkeit | 320 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193172% |
| Reaktionszeit | TBD |
| Blickwinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
