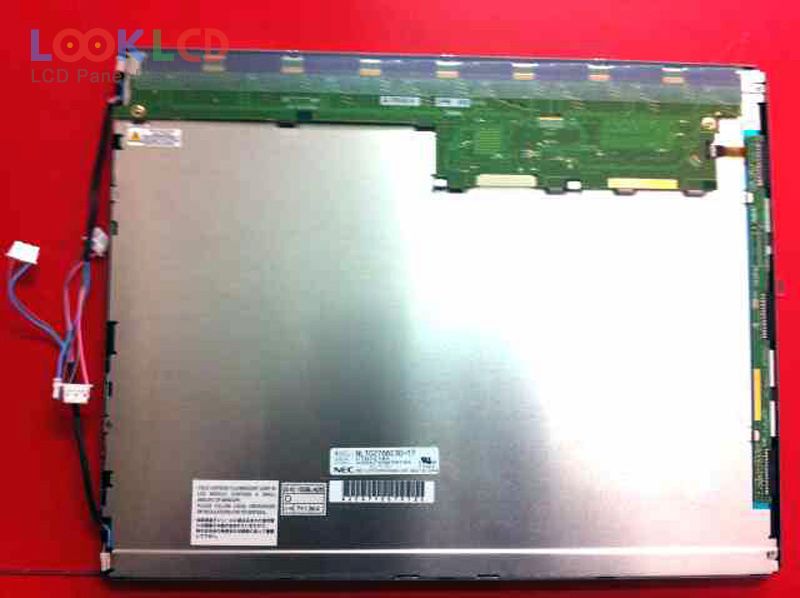

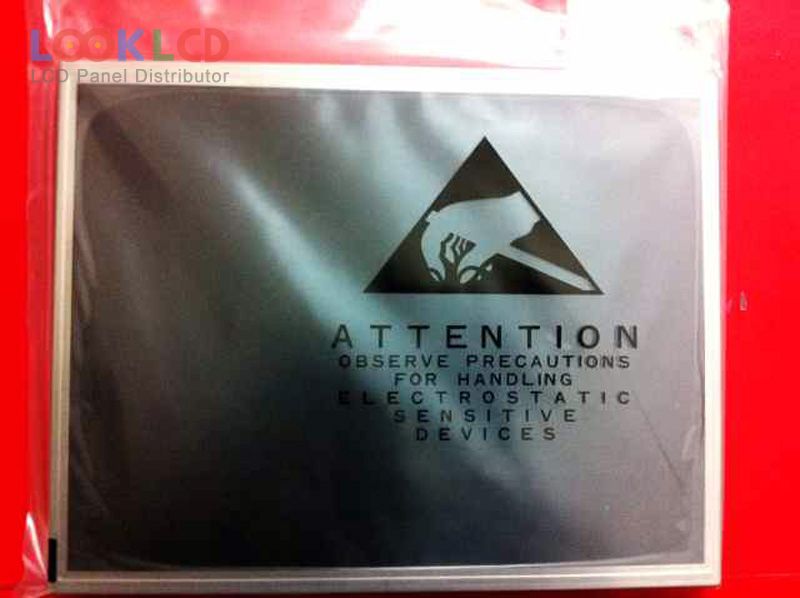

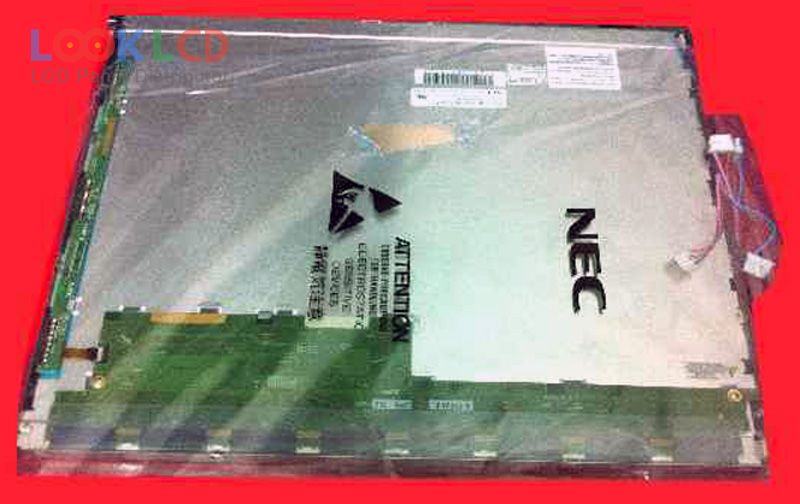

| Artikelnummer | NL10276BC30-17 |
| Marke | NLT |
| Größe | 15.0 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 700:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL10276BC30-17 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | UA-SFT, Normally Black, Transmissive |
| aktiver Bereich | 304.128×228.096 mm |
| Umriss | 326.5×253.5×17 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 14/11 (Typ.)(Tr/Td) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
