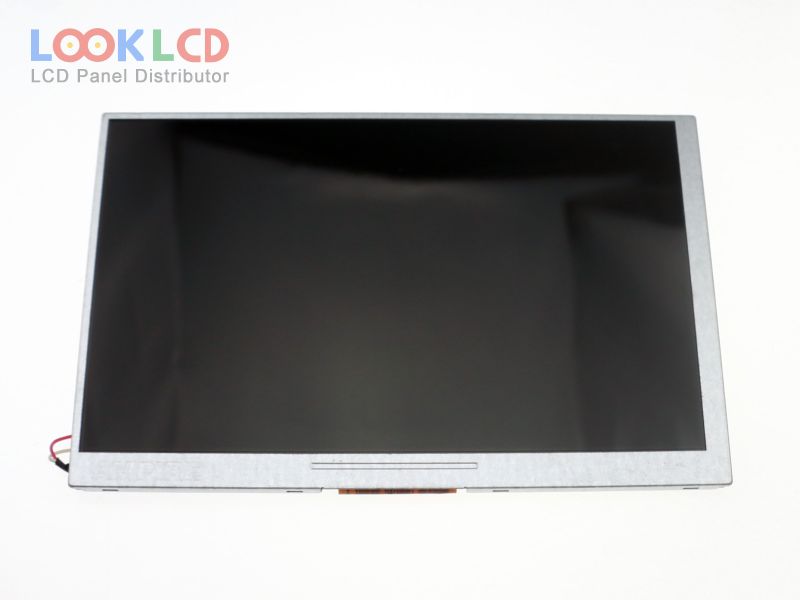

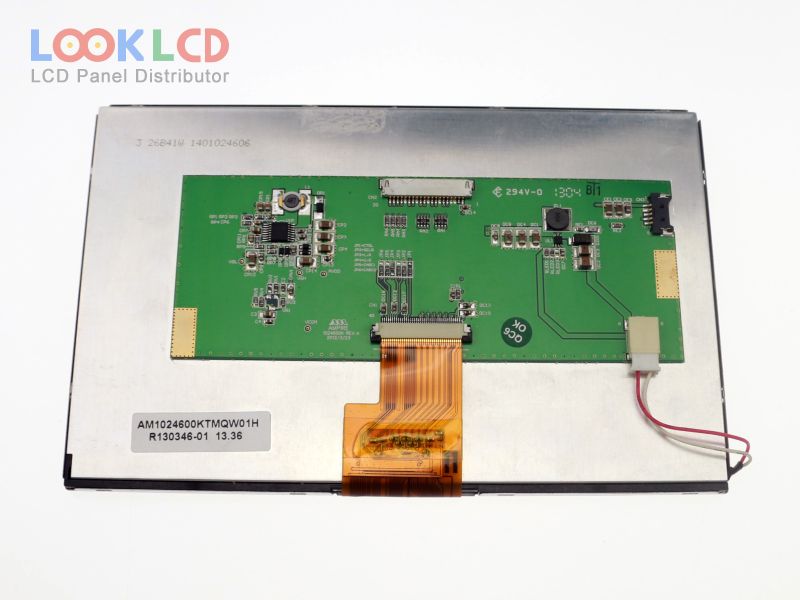

| Artikelnummer | AM-1024600KTMQW-01H |
| Marke | AMPIRE |
| Größe | 7.0 |
| Anwendung | IA |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 1000 |
| CR | 700:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AMPIRE |
| Panel-Modell | AM-1024600KTMQW-01H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 153.6×90 mm |
| Umriss | 165.5×104.44×7.91 mm |
| Oberfläche | Glare (Haze 0%), Hard coating |
| Helligkeit | 1000 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S3PWLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
