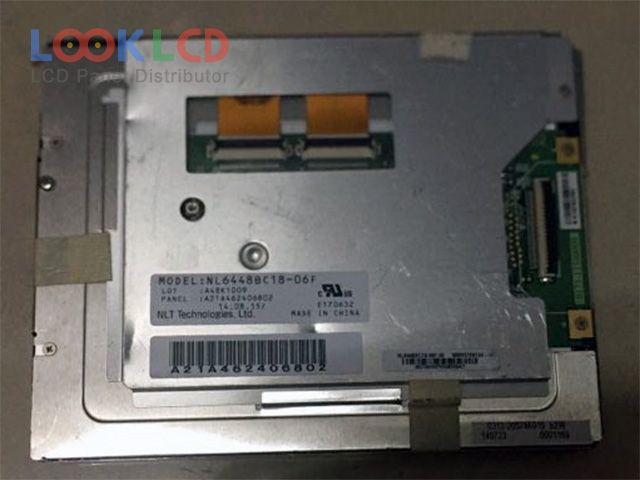

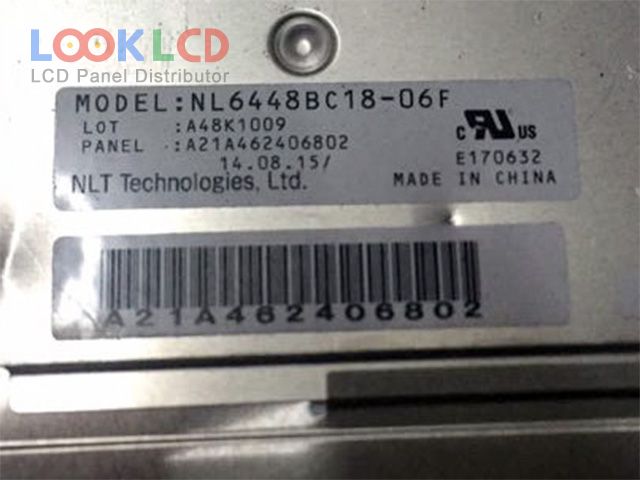

| Artikelnummer | NL6448BC18-06F |
| Marke | NLT |
| Größe | 5.7 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 800 |
| CR | 850:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL6448BC18-06F |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.7 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 116.16×87.12 mm |
| Umriss | 135×104.6×11 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 800 cd/m² (Typ.) |
| Kontrastverhältnis | 850:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 3/15 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 9S2P×2CNWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
