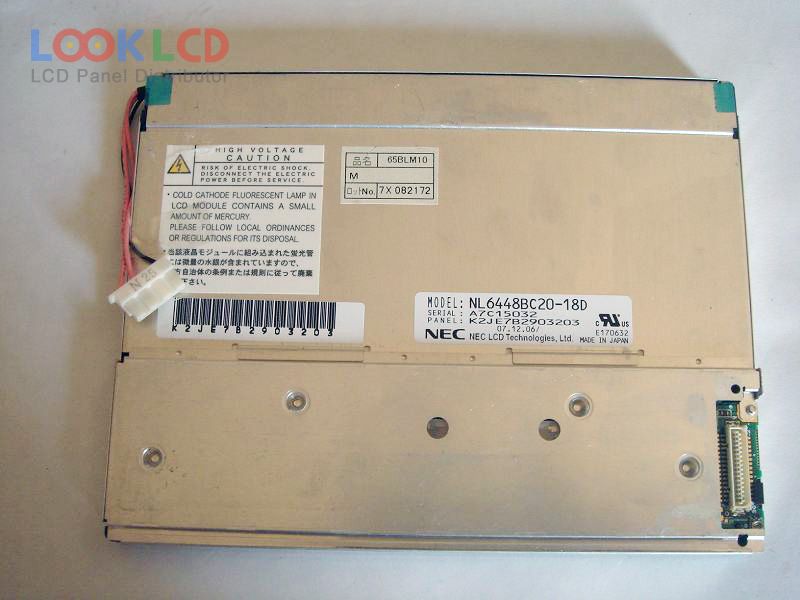

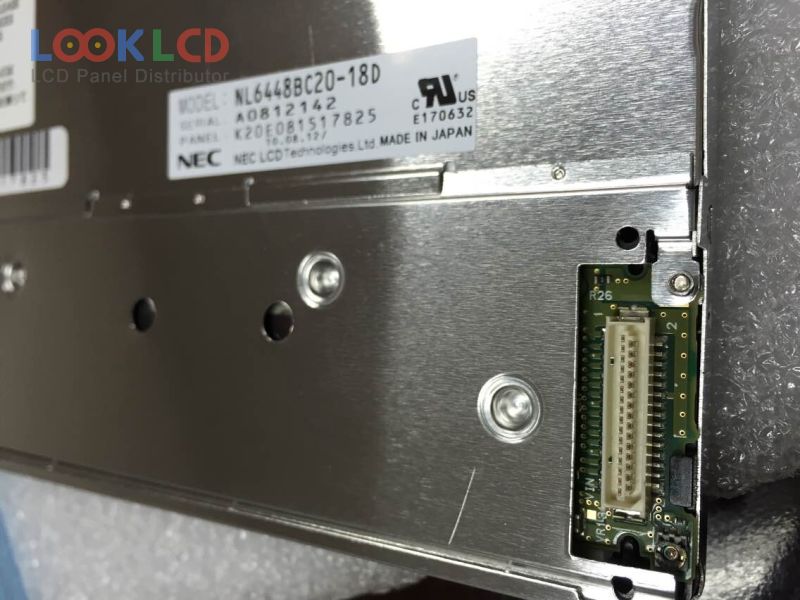

| Artikelnummer | NL6448BC20-18D |
| Marke | NLT |
| Größe | 6.5 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 600:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL6448BC20-18D |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 6.5 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 132.48×99.36 mm |
| Umriss | 153×118 mm |
| Oberfläche | Antiglare, Hard coating (2H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193140% |
| Reaktionszeit | 6/19 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 31 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| Anwendung | IA |
