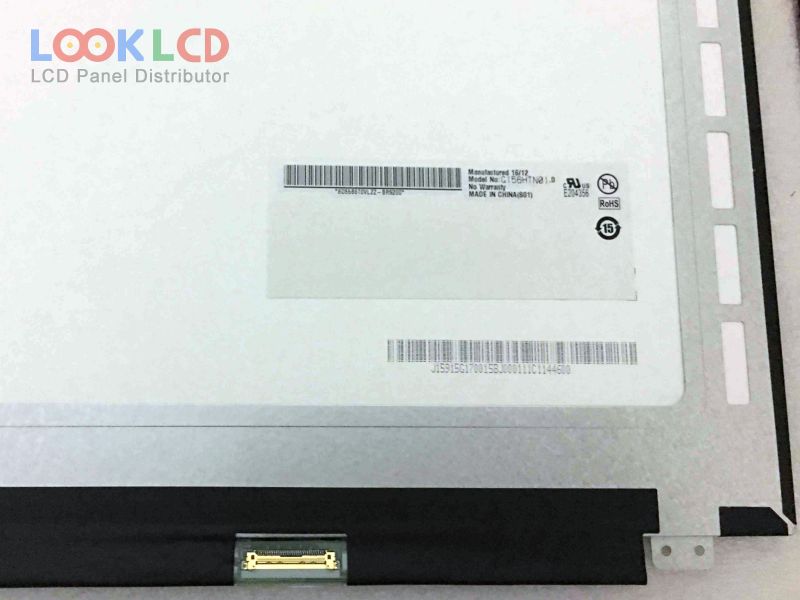

| Artikelnummer | G156HTN01.0 |
| Marke | AUO |
| Größe | 15.6 |
| Anwendung | IA |
| Auflösung | 1920×1080 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 700:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | AUO |
| Panel-Modell | G156HTN01.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1920(RGB)×1080 , FHD |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.16×193.59 mm |
| Umriss | 359.5×224.3×3.55 mm |
| Oberfläche | Antiglare (Haze 25%) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 6/3 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (2 Lanes), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
