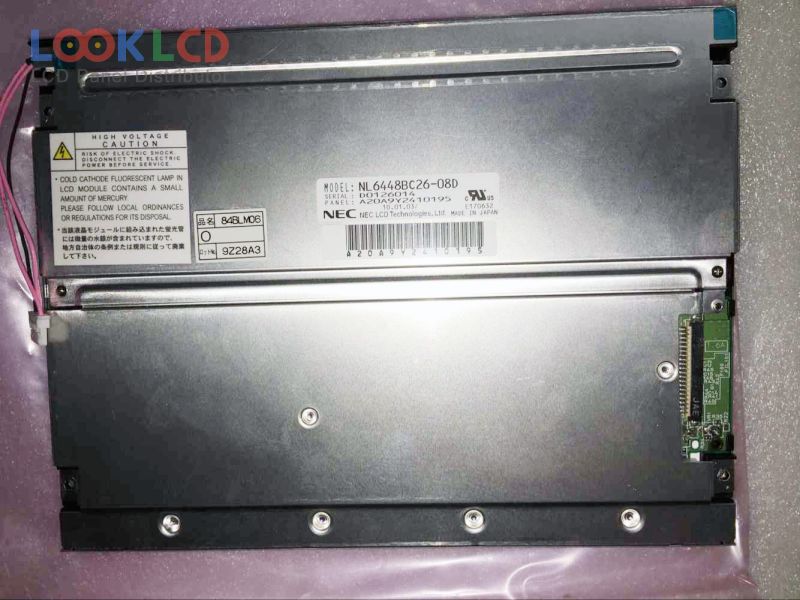

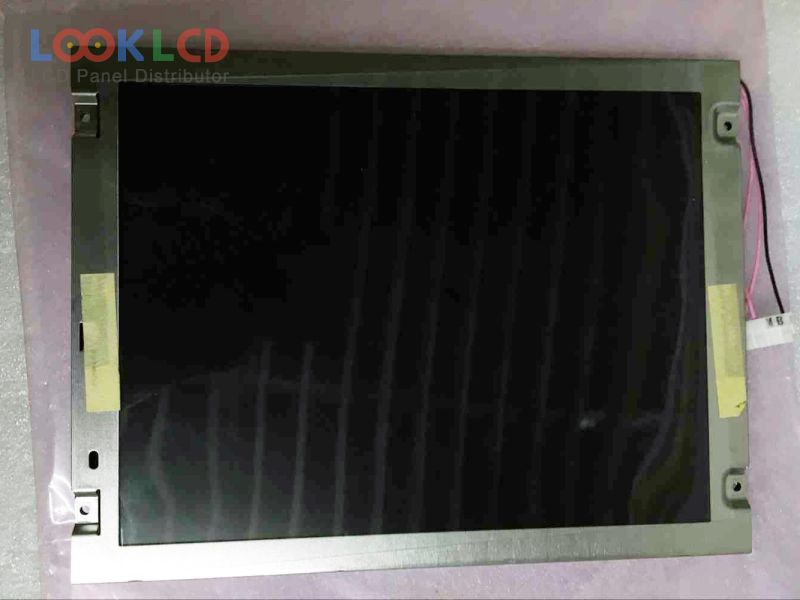

| Artikelnummer | NL6448BC26-08D |
| Marke | NLT |
| Größe | 8.4 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 800:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL6448BC26-08D |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.4 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | UA-SFT, Normally Black, Transmissive |
| aktiver Bereich | 170.88×128.16 mm |
| Umriss | 200×152 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| Reaktionszeit | 10/10 (Typ.)(Tr/Td) |
| Blickwinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
