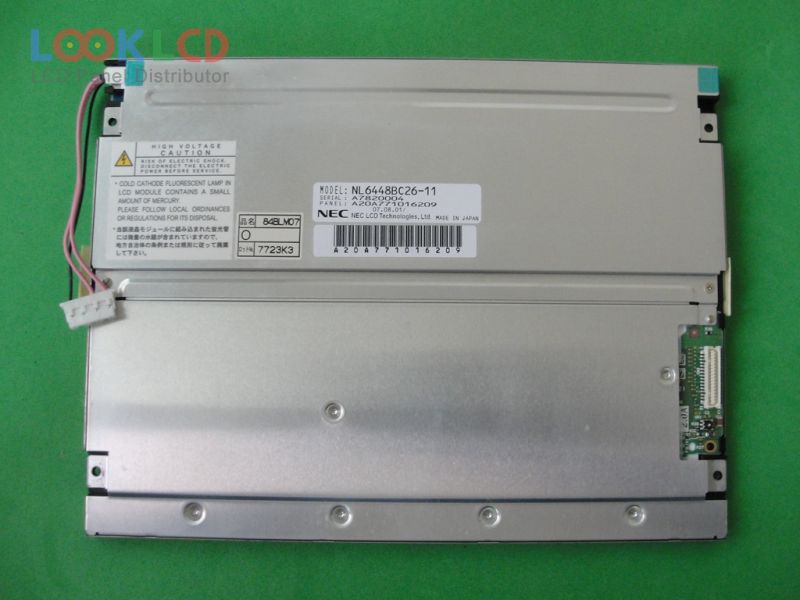

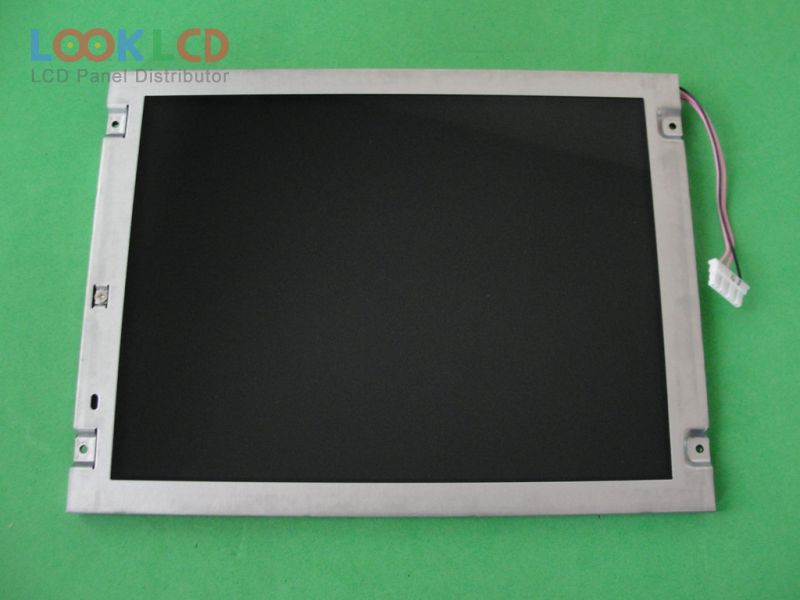

| Artikelnummer | NL6448BC26-11 |
| Marke | NLT |
| Größe | 8.4 |
| Anwendung | IA |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL6448BC26-11 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.4 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | |
| aktiver Bereich | 170.88×128.16 mm |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | |
| Farben anzeigen | |
| Reaktionszeit | |
| Blickwinkel | |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 31 pins |
| rohs: | |
| Anwendung | IA |
