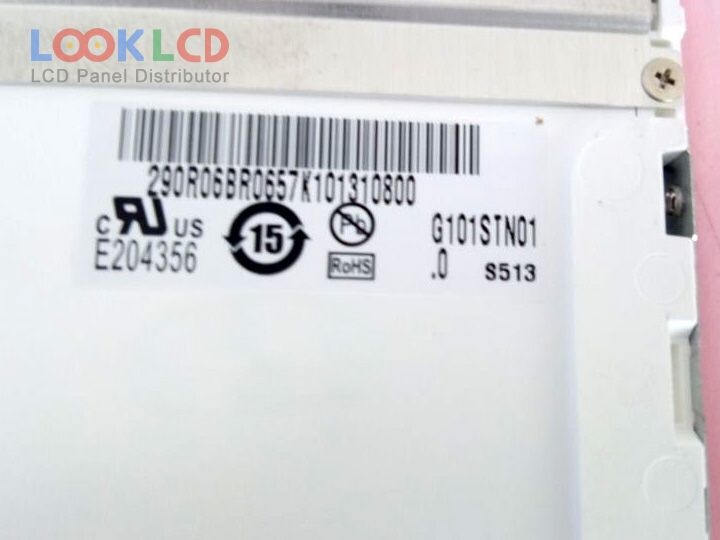

| Artikelnummer | G101STN01.0 |
| Marke | AUO |
| Größe | 10.1 |
| Anwendung | IA |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | AUO |
| Panel-Modell | G101STN01.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 222.72×125.28 mm |
| Umriss | 235×143×5.2 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193145% |
| Reaktionszeit | 7/9 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
