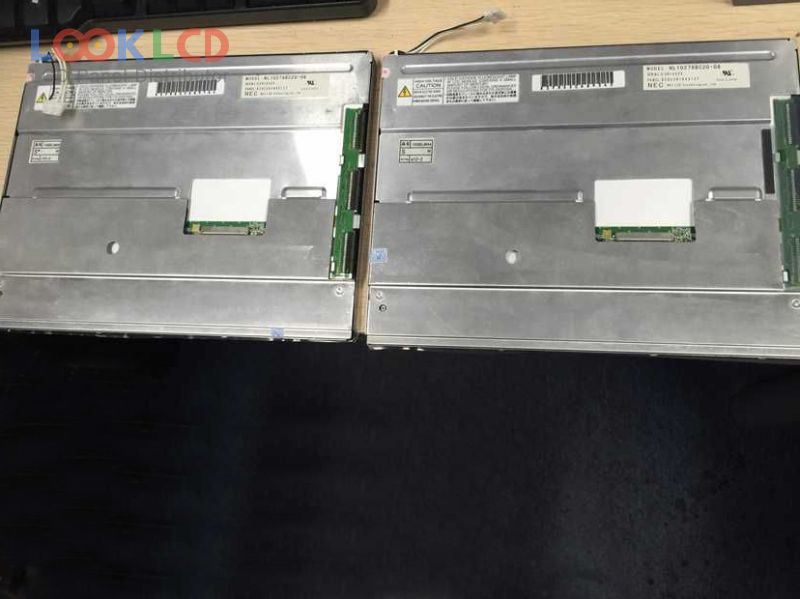

| Artikelnummer | NL10276BC20-08 |
| Marke | NLT |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 700:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL10276BC20-08 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | SA-SFT, Normally Black, Transmissive |
| aktiver Bereich | 210.4×157.8 mm |
| Umriss | 227×174.5 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193140% |
| Reaktionszeit | 13/12 (Typ.)(Tr/Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
