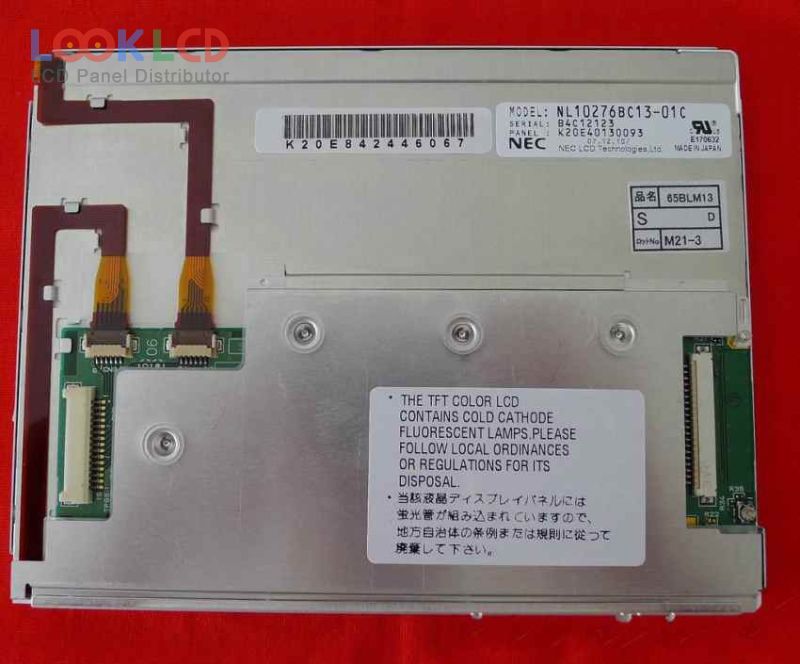

| Artikelnummer | NL10276BC13-01C |
| Marke | NLT |
| Größe | 6.5 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 650 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL10276BC13-01C |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 6.5 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 132.096×99.072 mm |
| Umriss | 153×118×9.5 mm |
| Oberfläche | Clear, Hard coating (2H), Antireflection |
| Helligkeit | 650 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193136% |
| Reaktionszeit | 6/19 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6 stringsWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
