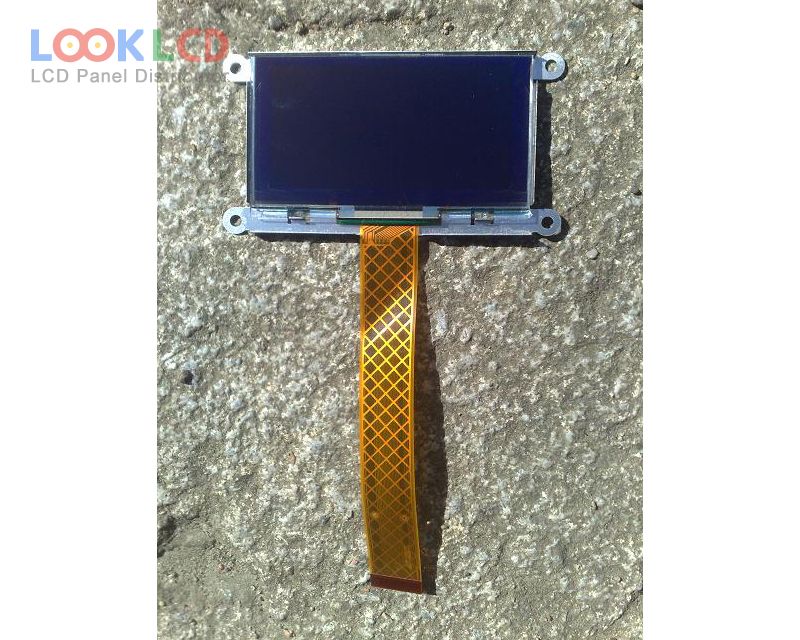

| Artikelnummer | UG-2864ASYDT01 |
| Marke | WiseChip |
| Größe | 2.7 |
| Anwendung | IA |
| Auflösung | 128×64 |
| Komposition | OLED |
| Helligkeit | 100 |
| CR | 1000:1 |
| Farben | Mono(Yellow) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI |
| Panel-Marke | Univision |
| Panel-Modell | UG-2864ASYDT01 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 2.7 inch |
| Auflösung | 128×64 |
| aktiver Bereich | 61.41×30.69 mm |
| Umriss | 73×41.86×3.7 mm |
| Oberfläche | |
| Helligkeit | 100 cd/m² (Typ.) |
| Kontrastverhältnis | 1000 : 1 (Min.) |
| Farben anzeigen | Mono(Yellow) (1-bit) |
| Blickwinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Treiber-IC | TAB Built-in SSD1325 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, 4-wire SPI, 30 pins |
| Eingangsspannung | 2.8/15V (Typ.)(VDD/VCC) |
| rohs: | |
| Anwendung | IA |
