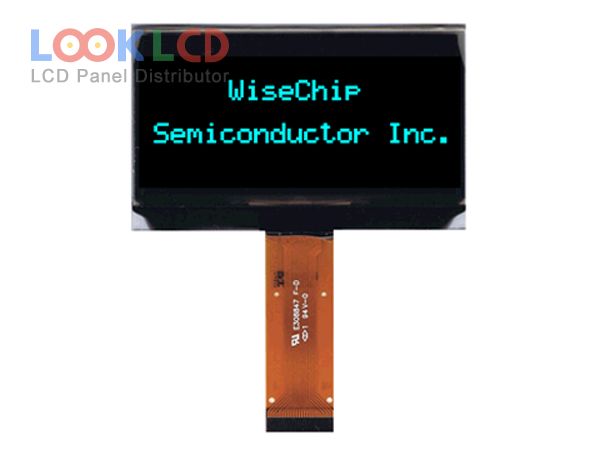

| Artikelnummer | UG-2864ALBPG01 |
| Marke | WiseChip |
| Größe | 2.4 |
| Anwendung | IA |
| Auflösung | 128×64 |
| Komposition | OLED |
| Helligkeit | 80 |
| CR | 10000:1 |
| Farben | Mono(Blue) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI/I²C |
| Panel-Marke | WiseChip |
| Panel-Modell | UG-2864ALBPG01 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 2.4 inch |
| Auflösung | 128×64 |
| aktiver Bereich | 55.01×27.49 mm |
| Umriss | 60.5×37 mm |
| Oberfläche | |
| Helligkeit | 80 cd/m² (Typ.) |
| Kontrastverhältnis | 10000 : 1 (Min.) |
| Farben anzeigen | Mono(Blue) (1-bit) |
| Blickwinkel | |
| Treiber-IC | COG Built-in SSD1309 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| Eingangsspannung | 2.8/13.0V (Typ.)(VDD/VCC) |
| Anwendung | IA |
