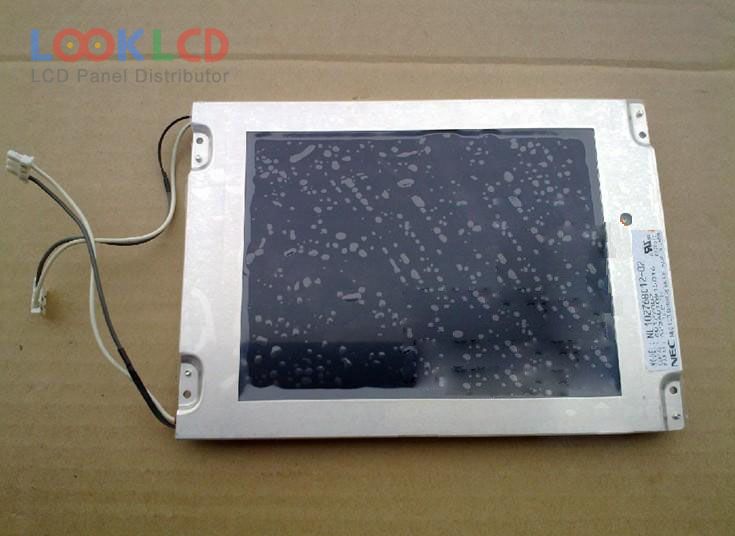

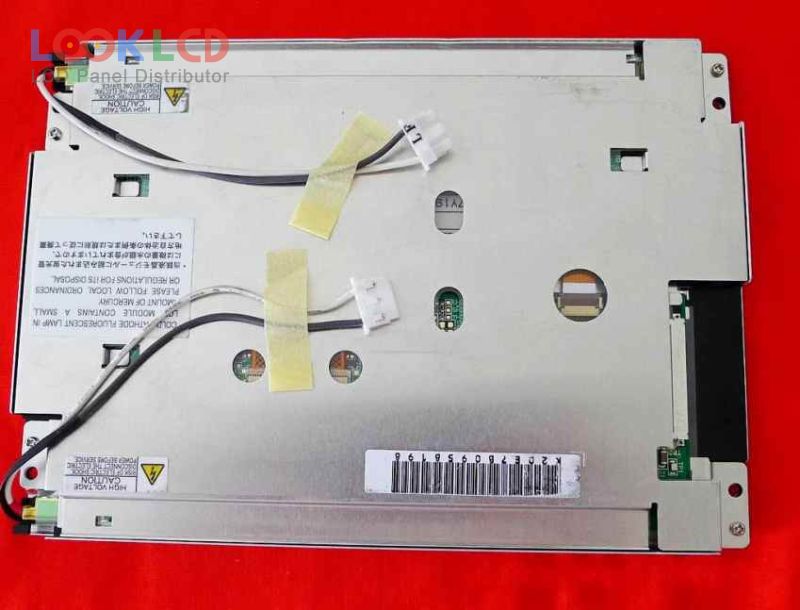

| Artikelnummer | NL10276BC12-02 |
| Marke | NLT |
| Größe | 6.3 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL10276BC12-02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 6.3 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 129.024×96.768 mm |
| Umriss | 178.8×126.8 mm |
| Oberfläche | Antiglare, Hard coating (2H), Antireflection |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| Reaktionszeit | 6/15 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| rohs: | |
| Anwendung | IA |
