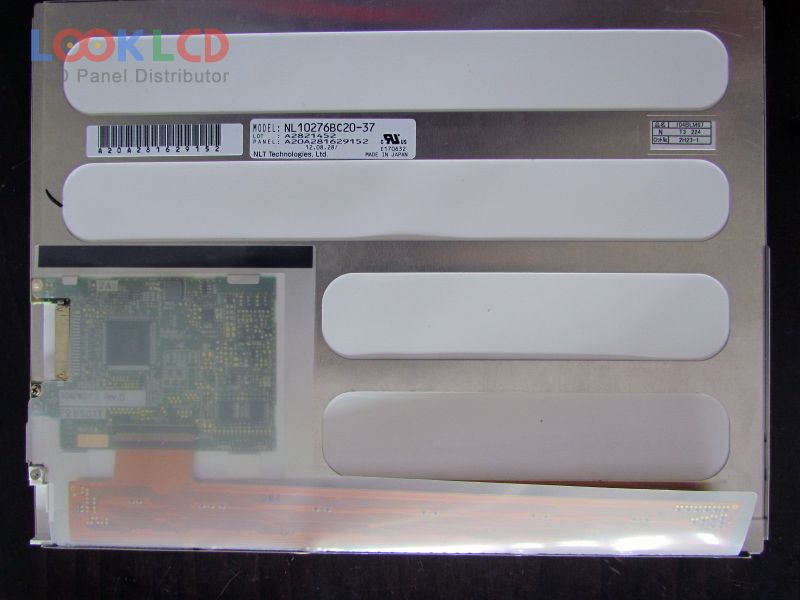

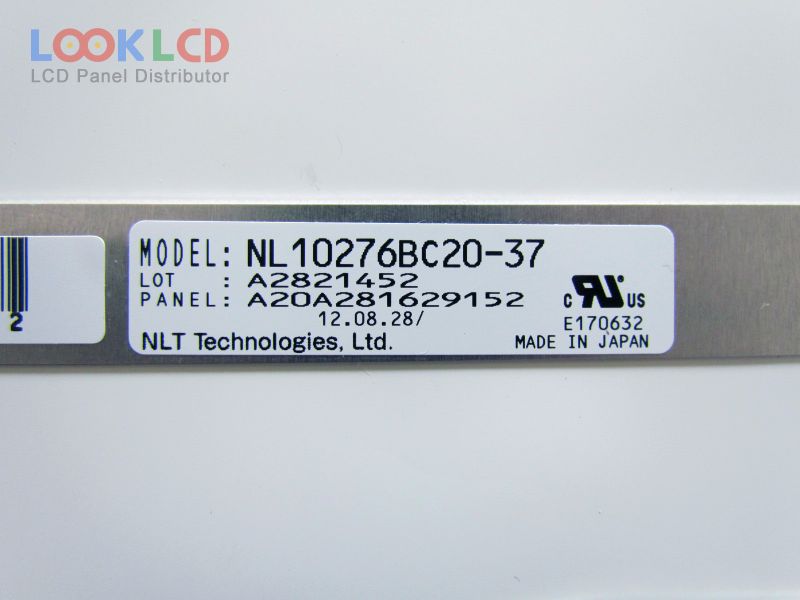

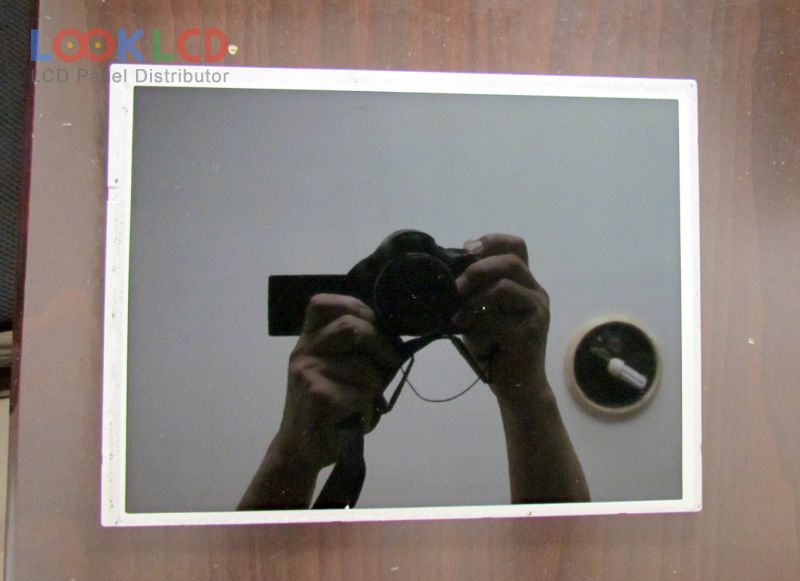

| Artikelnummer | NL10276BC20-37 |
| Marke | NLT |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 150 |
| CR | 400:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | NLT |
| Panel-Modell | NL10276BC20-37 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 210.4×157.8 mm |
| Umriss | 231.2×174.6×5.8 mm |
| Oberfläche | Clear |
| Helligkeit | 150 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Reaktionszeit | 3/15 (Typ.)(Tr/Td) |
| Blickwinkel | 45/45/40/20 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit) |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
