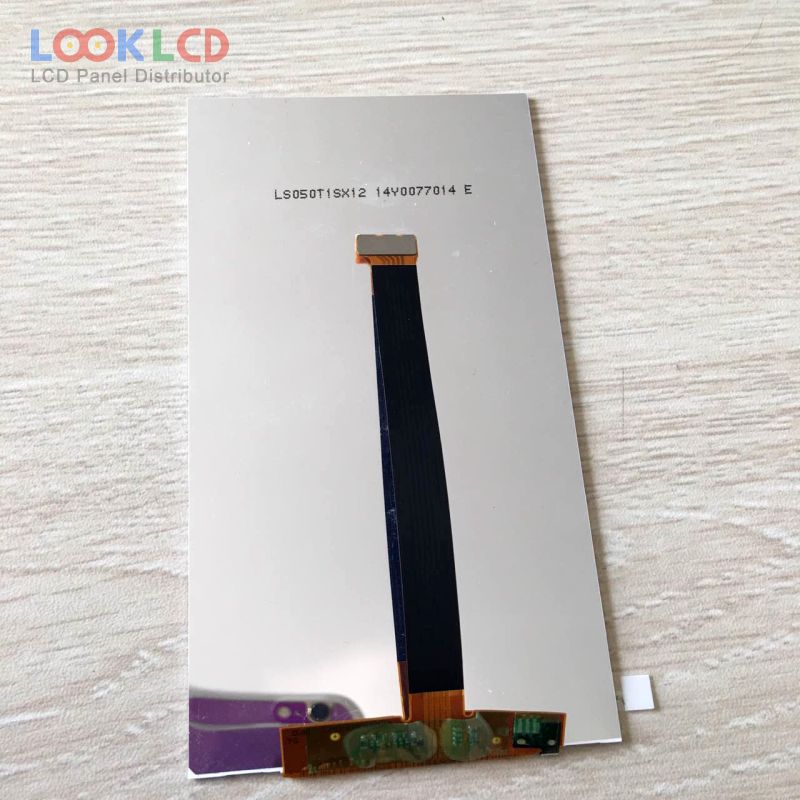

| Artikelnummer | LS050T1SX12(K) |
| Marke | SHARP |
| Größe | 5.0 |
| Anwendung | MPH |
| Auflösung | 1080×1920 |
| Komposition | LCM |
| Helligkeit | 460 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | SHARP |
| Panel-Modell | LS050T1SX12(K) |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 5.0 inch |
| Auflösung | 1080(RGB)×1920 , FHD |
| Anzeigemodus | New Mode2, Normally Black, Transmissive |
| aktiver Bereich | 61.641×109.584 mm |
| Umriss | 64.041×116.224×1.13 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 460 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193195% |
| Reaktionszeit | 35 (Max.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 7S2PWLEDWithout Driver |
| Signalschnittstelle | MIPI (4 data lanes), 34 pins |
| Eingangsspannung | 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) |
| Anwendung | MPH |
