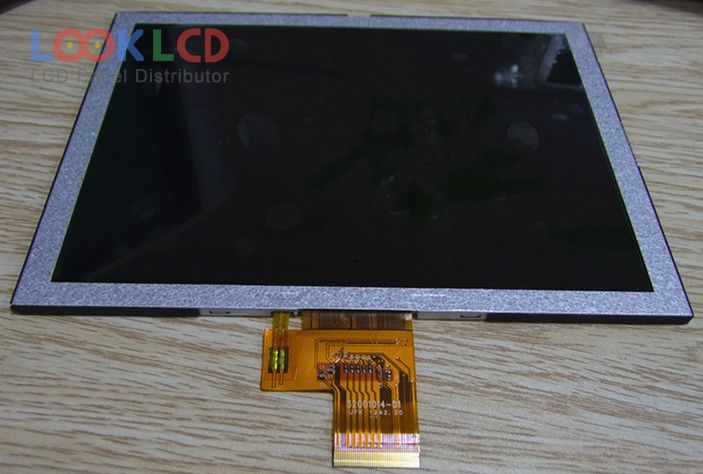

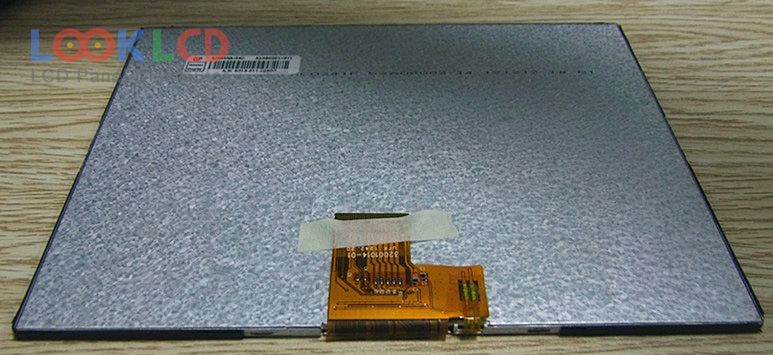

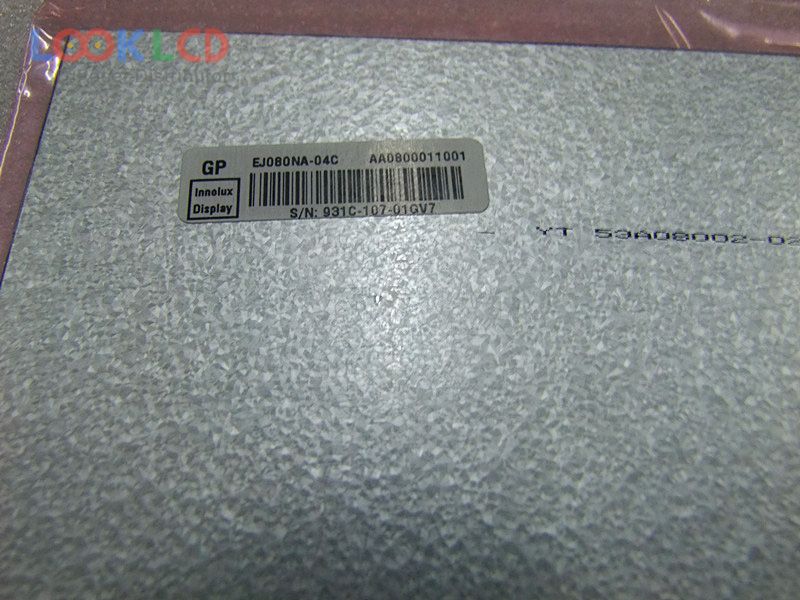

| Artikelnummer | EJ080NA-04C |
| Marke | Innolux |
| Größe | 8.0 |
| Anwendung | DPF |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 700:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | EJ080NA-04C |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 162.048×121.536 mm |
| Umriss | 183×141 mm |
| Oberfläche | Hard coating |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 6/14 (Typ.)(Tr/Td) |
| Blickwinkel | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 40 pins |
| Eingangsspannung | 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | DPF |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| EJ080NA-04B | Innolux | 8.0 | 1024×768 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| EJ080NA-05A | Innolux | 8.0 | 800×600 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
| TX20D16VM2BAA | KOE | 8.0 | 800×480 |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A070SN01 V3 | AUO | 7.0 | 800×600 |
| AT056TN52 V.3 | Innolux | 5.6 | 640×480 |
| DLC0700EZG-1 | Other | 7.0 | 800×480 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LTA070B0C0A | TOSHIBA | 7.0 | 480×234 |
| PW070XU3 | E Ink | 7.0 | 480×234 |
