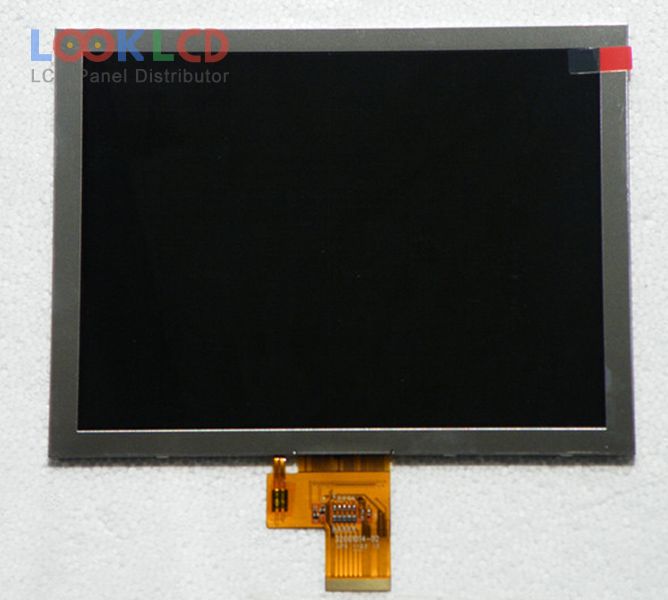

| Artikelnummer | EJ080NA-04B |
| Marke | Innolux |
| Größe | 8.0 |
| Anwendung | DPF |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 700:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | EJ080NA-04B |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 162.048×121.536 mm |
| Umriss | 183×141 mm |
| Oberfläche | Hard coating |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 6/14 (Typ.)(Tr/Td) |
| Blickwinkel | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 40 pins |
| Eingangsspannung | 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | DPF |
