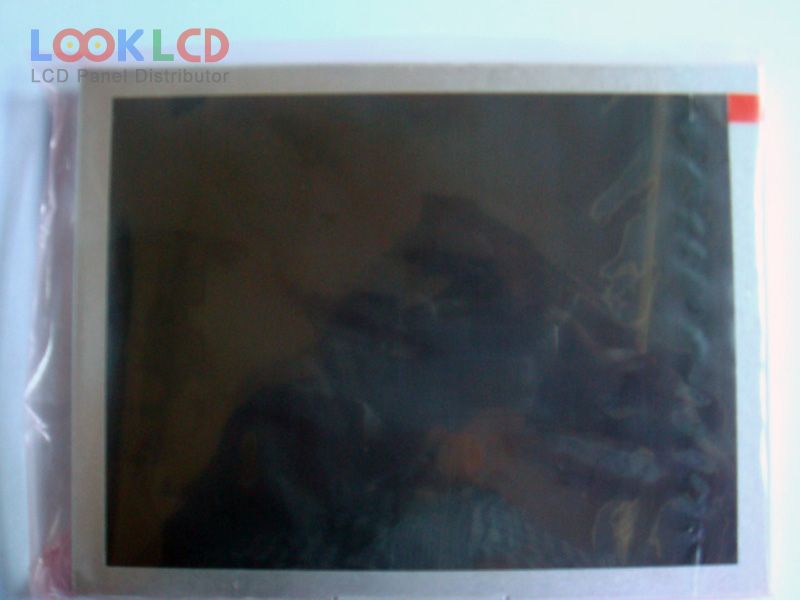

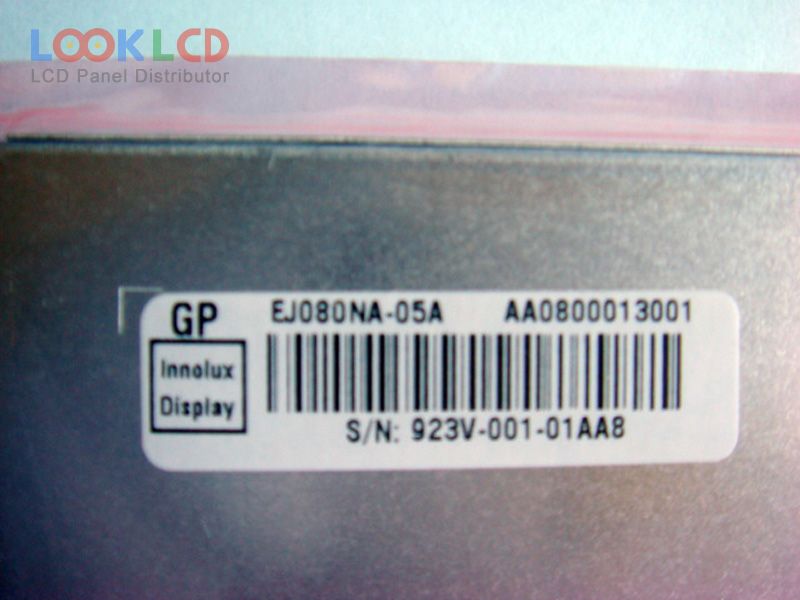

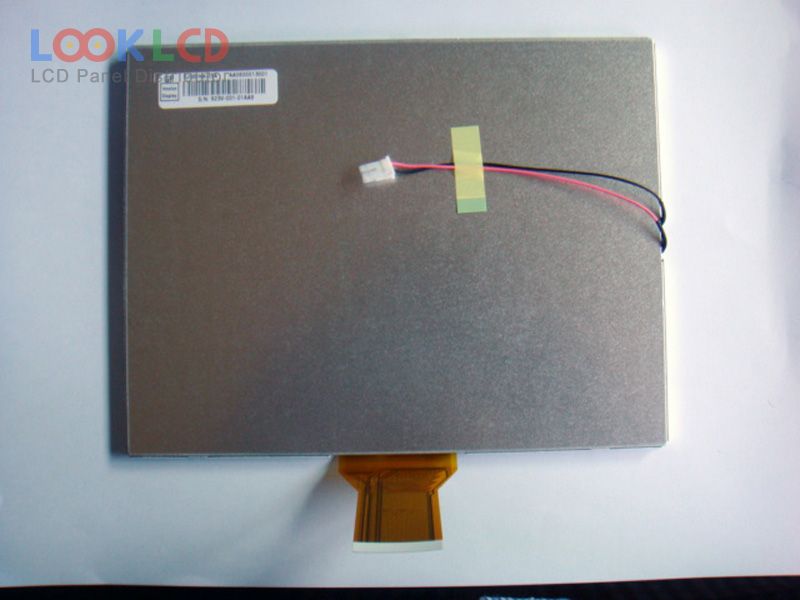

| Artikelnummer | EJ080NA-05A |
| Marke | Innolux |
| Größe | 8.0 |
| Anwendung | DPF |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | EJ080NA-05A 2 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 162×121.5 mm |
| Umriss | 183×141×5.9 mm |
| Oberfläche | Antiglare |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S9PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit), 50 pins |
| Eingangsspannung | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | DPF |
