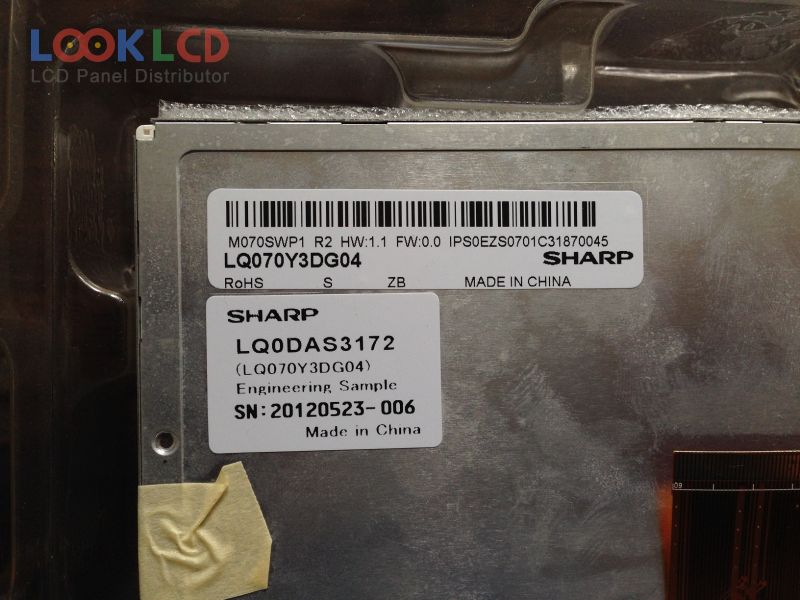

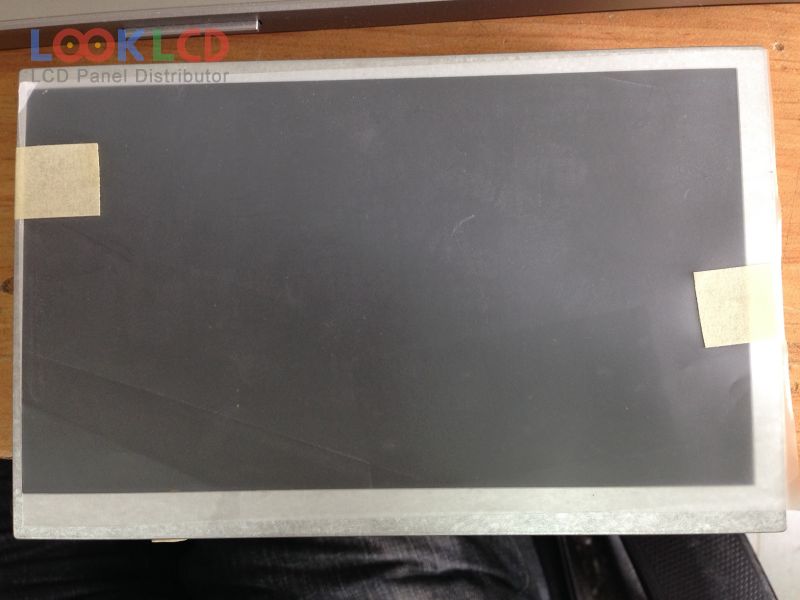

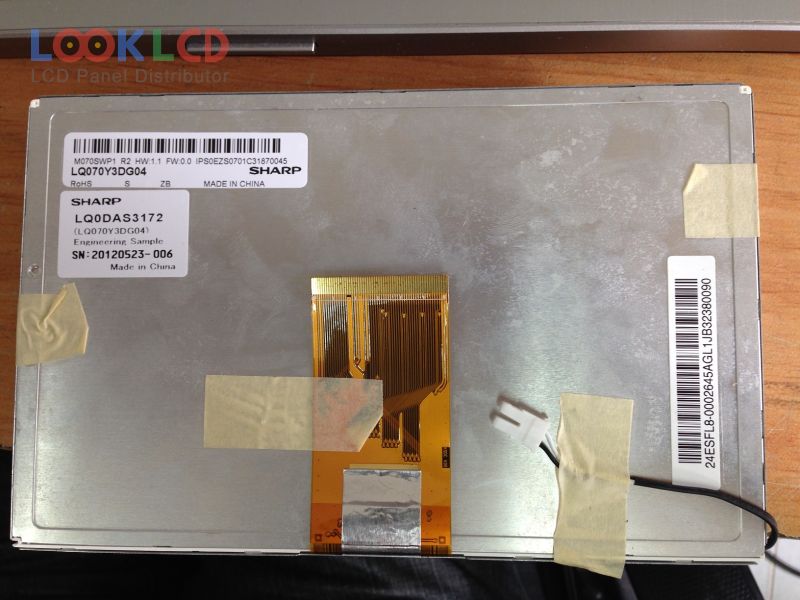

| Artikelnummer | LQ070Y3DG04 |
| Marke | SHARP |
| Größe | 7.0 |
| Anwendung | DPF |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LQ070Y3DG04 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 153.6×86.64 mm |
| Umriss | 165×104×5.4 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S2PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| Eingangsspannung | 3.3/10.4/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | DPF |
