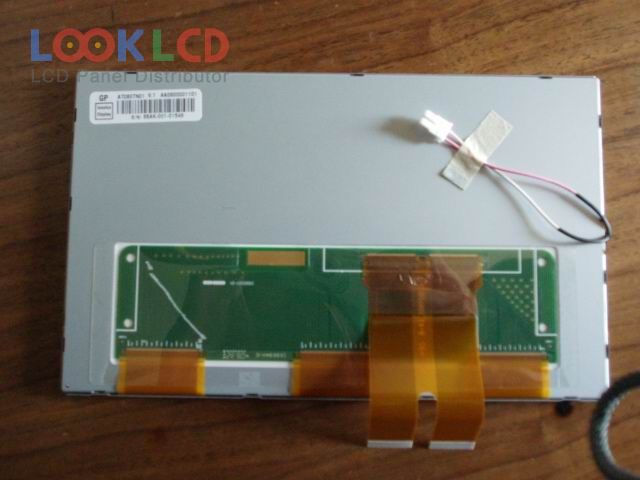

| Artikelnummer | AT080TN01 |
| Marke | Innolux |
| Größe | 8.0 |
| Anwendung | DPF |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | INNOLUX |
| Panel-Modell | AT080TN01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 176.64×99.36 mm |
| Umriss | 192.8×116.9×6.7 mm |
| Oberfläche | Antiglare |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 15/20 (Typ.)(Tr/Td) |
| Blickwinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 60 pins |
| Eingangsspannung | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
