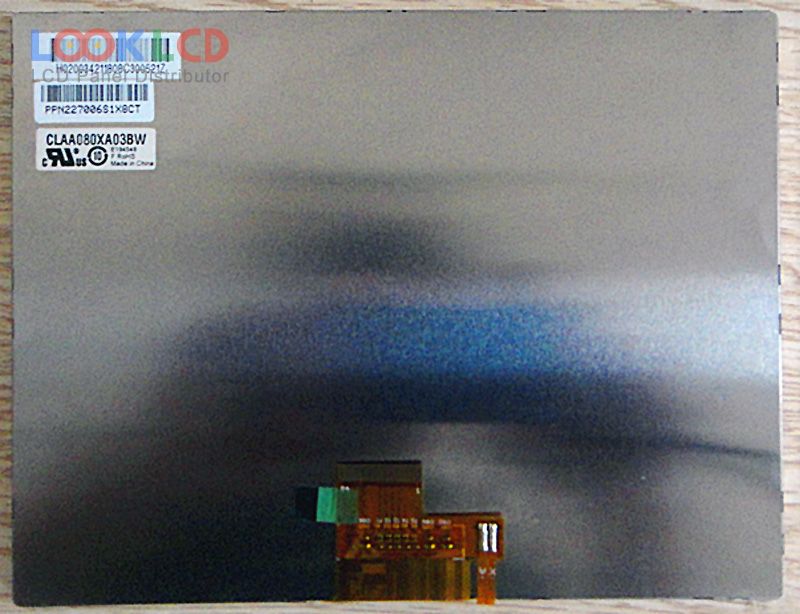

| Artikelnummer | CLAA080XA03BW |
| Marke | CPT |
| Größe | 8.0 |
| Anwendung | DPF |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 700:1 |
| Farben | 16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CPT |
| Panel-Modell | CLAA080XA03BW |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 162.048×121.536 mm |
| Umriss | 183×141×4 mm |
| Oberfläche | Antiglare |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 16.2M (6-bit + FRC), CIE193150% |
| Reaktionszeit | 20 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S11PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VHL) |
| Anwendung | DPF |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| CLAA089NA0BCW | CPT | 8.9 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| A080SN03 V0 | AUO | 8.0 | 800×600 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| LTA120W1-T02 | Samsung | 12.0 | 800×480 |
| PM102WX1 | E Ink | 10.2 | 800×480 |
