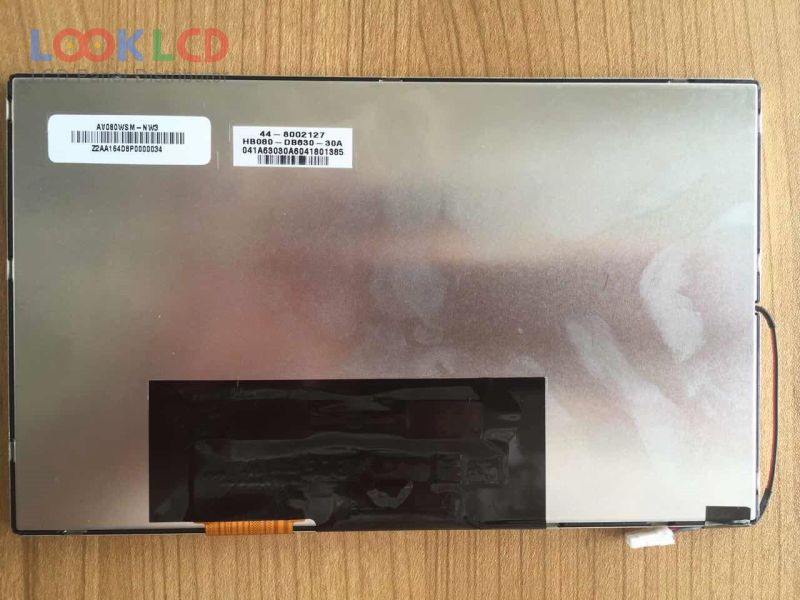

| Artikelnummer | AV080WSM-NW3 |
| Marke | BOE |
| Größe | 8.0 |
| Anwendung | CNS |
| Auflösung | 1024×600 |
| Komposition | LCM |
| Helligkeit | 600 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | BOE |
| Panel-Modell | AV080WSM-NW3 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 1024(RGB)×600 , WSVGA |
| Anzeigemodus | ADS, Normally Black, Transmissive |
| aktiver Bereich | 176.64×99.36 mm |
| Umriss | 192.8×116.9×7.1 mm |
| Oberfläche | |
| Helligkeit | 600 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S10PWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3/11.5/24/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Anwendung | CNS |
