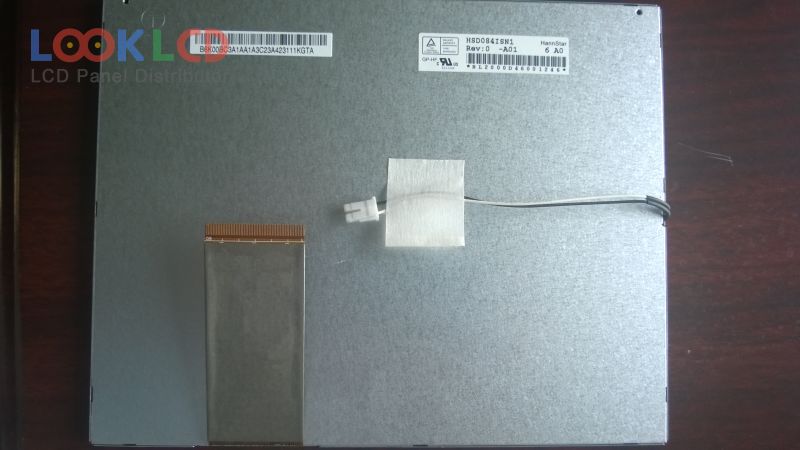

| Artikelnummer | HSD084ISN1-A01 |
| Marke | HannStar |
| Größe | 8.4 |
| Anwendung | DPF |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 380 |
| CR | 600:1 |
| Farben | 262K/16.2M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | HannStar |
| Panel-Modell | HSD084ISN1-A01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.4 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 170.4×127.8 mm |
| Umriss | 189.7×149.4×5.3 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 380 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K/16.2M (6-bit / 6-bit + FRC) |
| Reaktionszeit | 2/6 (Typ.)(Tr/Td) |
| Blickwinkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 3S9PWLEDWithout Driver |
| Signalschnittstelle | TTL (1 ch, 6/8-bit), 60 pins |
| Eingangsspannung | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | DPF |
