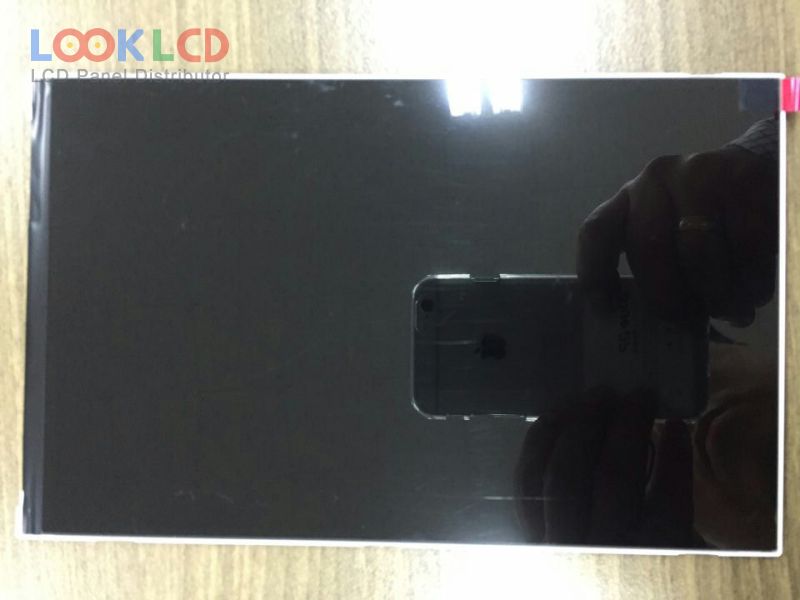

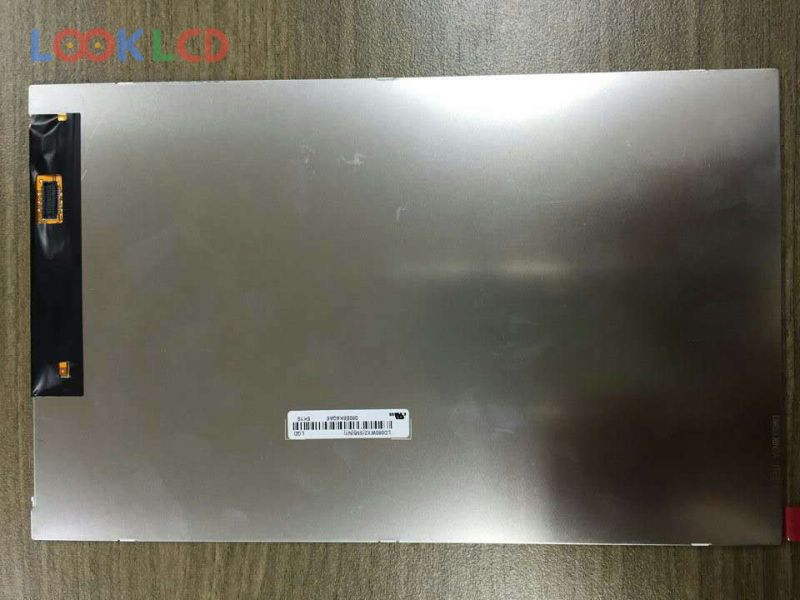

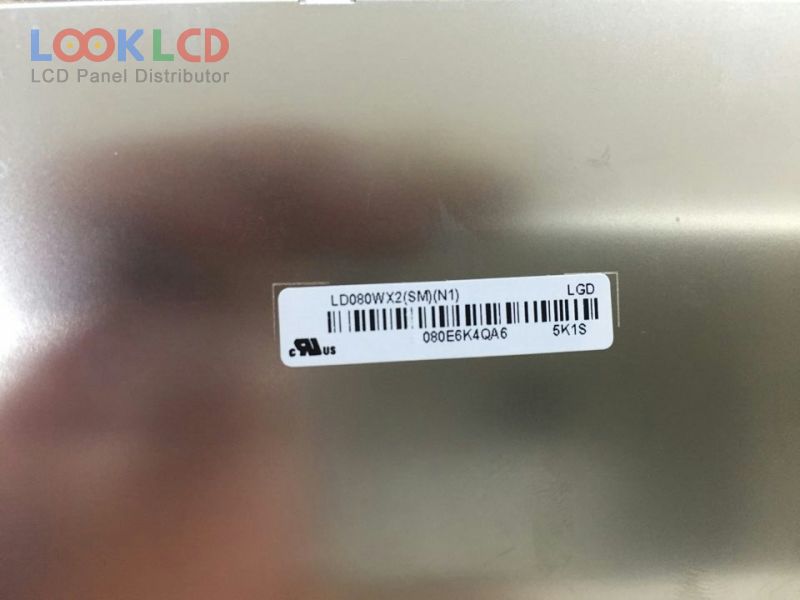

| Artikelnummer | LD080WX2-SMN1 |
| Marke | LG Display |
| Größe | 8.0 |
| Anwendung | PAD |
| Auflösung | 800×1280 |
| Komposition | LCM |
| Helligkeit | 330 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | LG Display |
| Panel-Modell | LD080WX2-SMN1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 8.0 inch |
| Auflösung | 800(RGB)×1280 , WXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 107.64×172.224 mm |
| Umriss | 114.6×184.55×4.25 mm |
| Oberfläche | Hard coating |
| Helligkeit | 330 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 7S3PWLEDWithout Driver |
| Signalschnittstelle | MIPI (4 data lanes), 34 pins |
| Eingangsspannung | 1.8/5.2/-5.2V (Typ.)(VDDI/AVDD/AVEE) |
| Anwendung | PAD |
