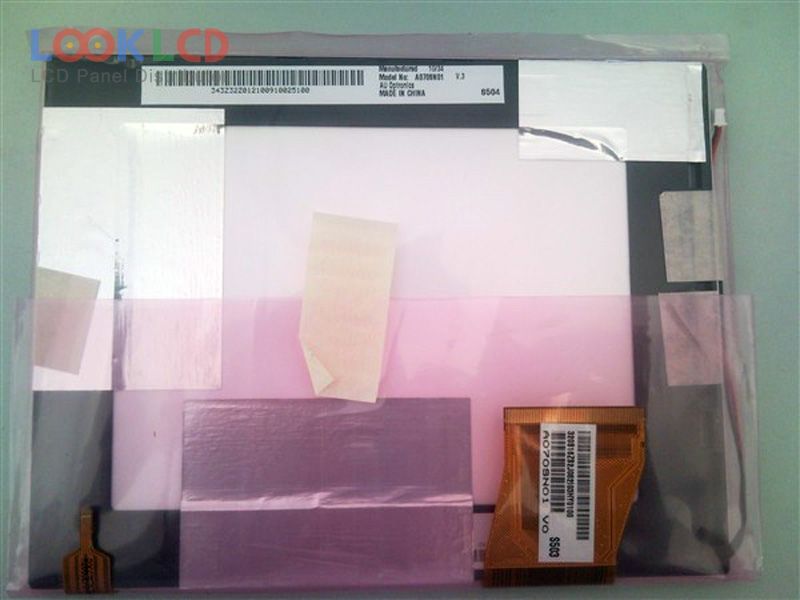

| Artikelnummer | A070SN01 V3 |
| Marke | AUO |
| Größe | 7.0 |
| Anwendung | DPF |
| Auflösung | 800×600 |
| Komposition | LCM |
| Helligkeit | 200 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AUO |
| Panel-Modell | A070SN01 V3 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×600 , SVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 141.6×106.2 mm |
| Umriss | 154×119.2×6.74 mm |
| Oberfläche | Antiglare (Haze 8%), Hard coating (3H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Reaktionszeit | 3/13 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 3S6PWLEDWithout Driver |
| Signalschnittstelle | TTL (1 ch, 6/8-bit), 60 pins |
| Eingangsspannung | 3.3/11.6/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Anwendung | DPF |
