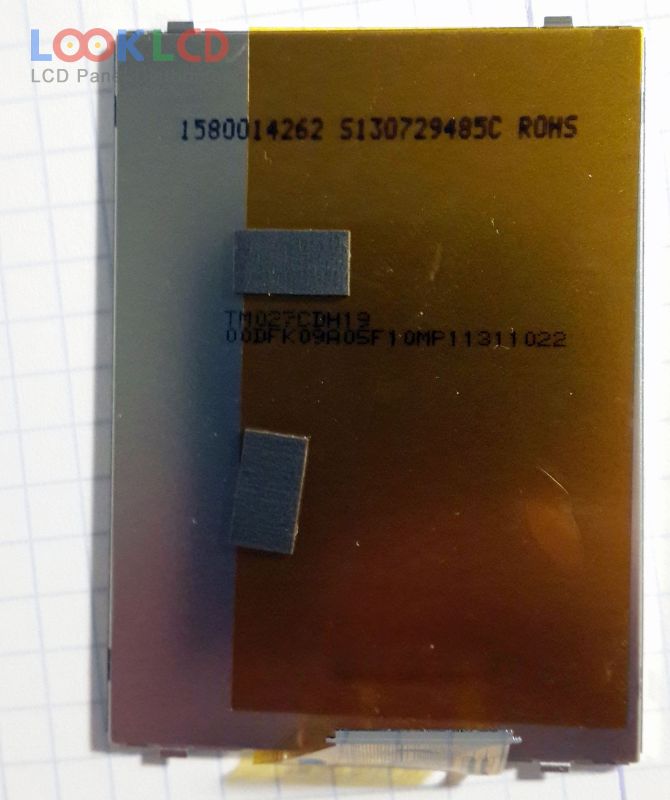

| Artikelnummer | TM027CDH19 |
| Marke | Tianma |
| Größe | 2.7 |
| Anwendung | DSC |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | |
| CR | 400:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Serial RGB |
| Panel-Marke | TIANMA |
| Panel-Modell | TM027CDH19 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.7 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 54×40.5 mm |
| Oberfläche | |
| Helligkeit | |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193145% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | WLED |
| Signalschnittstelle | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | DSC |
