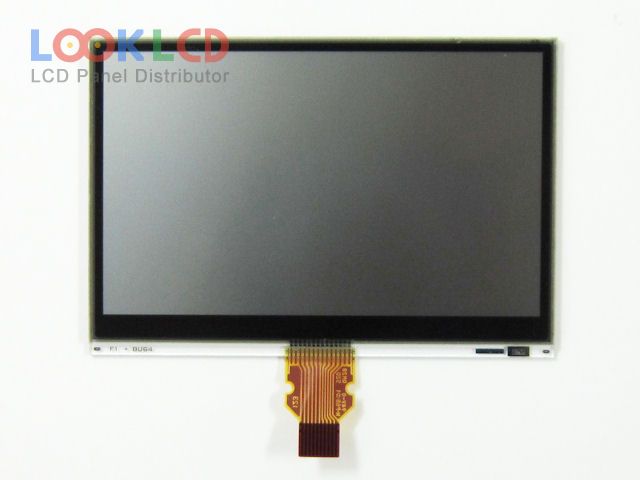

| Artikelnummer | LS027B4DH01 |
| Marke | SHARP |
| Größe | 2.7 |
| Anwendung | EPT |
| Auflösung | 400×240 |
| Komposition | LCM |
| Helligkeit | |
| CR | |
| Farben | Monochrome |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | SPI |
| Panel-Marke | SHARP |
| Panel-Modell | LS027B4DH01 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 2.7 inch |
| Auflösung | 400×240 , WQVGA |
| Anzeigemodus | Reflective |
| aktiver Bereich | 58.8×35.28 mm |
| Umriss | 62.8×42.82 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | |
| Kontrastverhältnis | 14:1 (Typ.)(Reflective) |
| Farben anzeigen | Monochrome (1-bit) |
| Reaktionszeit | 10/20 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/60/60 (Min.)(CR≥2)(L/R/U/D) |
| Lampentyp | No B/L |
| Signalschnittstelle | SPI, 10 pins |
| Eingangsspannung | 5.0/5.0V (Typ.)(VDD/VDDA) |
| Anwendung | EPT |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A027DN03 V7 | AUO | 2.7 | 320×240 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
| LS027B7DH01 | SHARP | 2.7 | 400×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| OEL9M0065-R-E | Other | 2.7 | 256×64 |
| OEL9M5001-G-E | Other | 2.7 | 128×64 |
| TM027CDH02 | Tianma | 2.7 | 320×240 |
| TM027CDH19 | Tianma | 2.7 | 320×240 |
| EG020AS012 | PDI | 2.0 | 200×96 |
| EK014AS014 | PDI | 1.44 | 128×96 |
| EQ030AS181 | PDI | 3.0 | 320×240 |
| ET044AS013 | PDI | 4.4 | 400×300 |
| EW074AT012 | PDI | 7.4 | 480×800 |
| LS012B4DG01 | SHARP | 1.2 | 184×38 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
