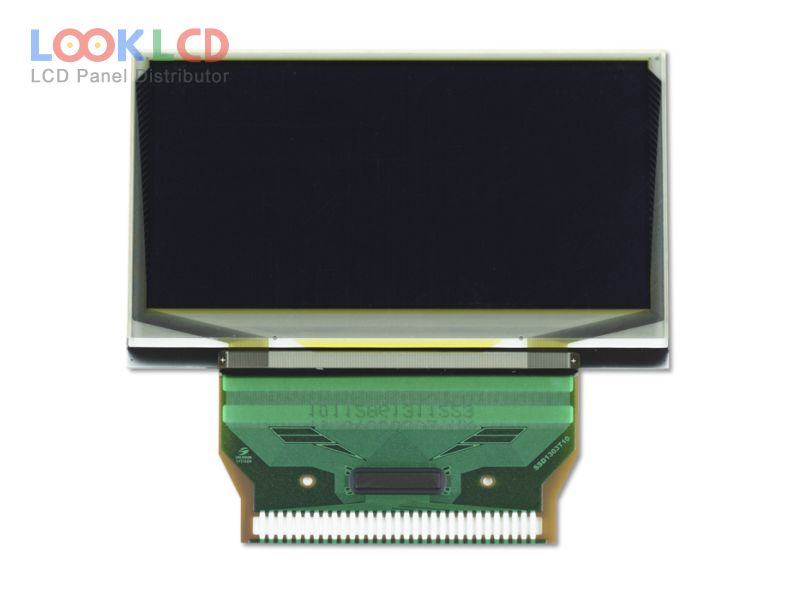

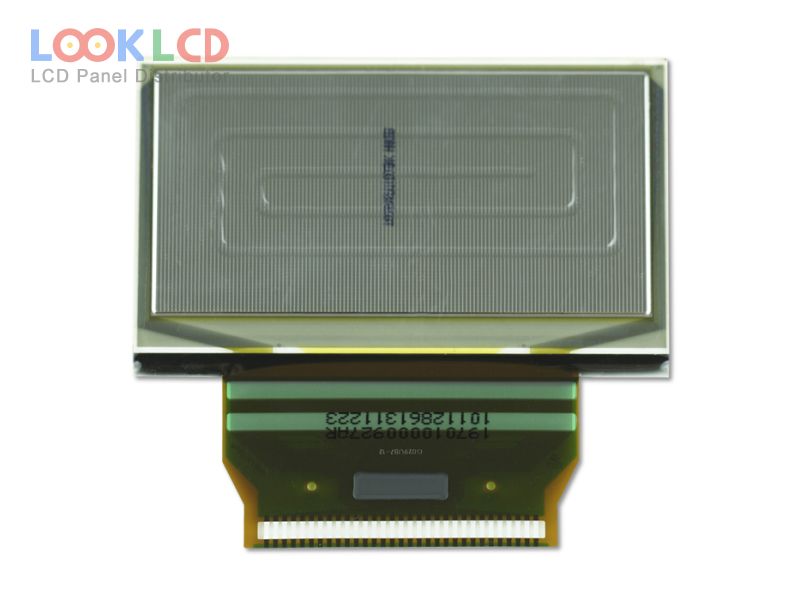

| Artikelnummer | RGS24128064YW004 |
| Marke | RiTdisplay |
| Größe | 2.4 |
| Anwendung | IA |
| Auflösung | 128×64 |
| Komposition | OLED |
| Helligkeit | 80 |
| CR | 2000:1 |
| Farben | Mono(Yellow) |
| Hintergrundbeleuchtung | self |
| Schnittstelle | CPU/SPI/I²C |
| Panel-Marke | RiTdisplay |
| Panel-Modell | RGS24128064YW004 |
| Plattentyp | PM-OLED , OLED |
| Panelgröße | 2.4 inch |
| Auflösung | 128×64 |
| aktiver Bereich | 55.01×27.49 mm |
| Umriss | 60.5×37×2.11 mm |
| Oberfläche | Antiglare |
| Helligkeit | 80 cd/m² (Typ.) |
| Kontrastverhältnis | 2000 : 1 (Min.) |
| Farben anzeigen | Mono(Yellow) (1-bit) |
| Blickwinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequenz | 105Hz |
| Treiber-IC | TAB Built-in SSD1303 |
| Signalschnittstelle | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| Eingangsspannung | 13.0/2.7V (Typ.)(VCC/VDD) |
| Anwendung | IA |
