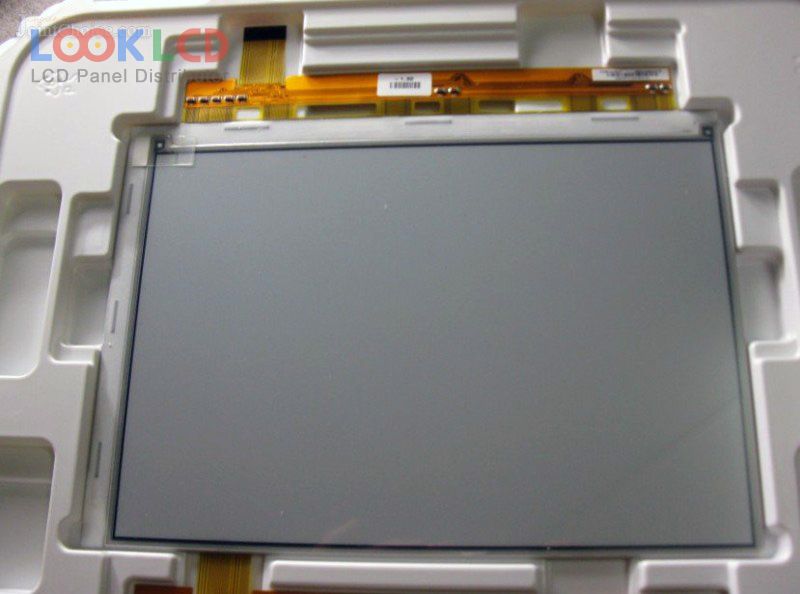

| Artikelnummer | ED097OC4 |
| Marke | E Ink |
| Größe | 9.7 |
| Anwendung | EBK |
| Auflösung | 1200×825 |
| Komposition | EPD |
| Helligkeit | |
| CR | |
| Farben | Grayscale |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | Parallel Data |
| Panel-Marke | PVI |
| Panel-Modell | ED097OC4 |
| Plattentyp | EPD , EPD |
| Panelgröße | 9.7 inch |
| Auflösung | 1200×825 |
| aktiver Bereich | 202.8×139.425 mm |
| Umriss | 218.8×156.425 mm |
| Oberfläche | Antiglare, Hard coating |
| Helligkeit | |
| Kontrastverhältnis | 12:1 (Typ.)(Reflective) |
| Farben anzeigen | Grayscale (4-bit) |
| Blickwinkel | |
| Frequenz | 50Hz |
| Signalschnittstelle | Parallel Data (1ch, 8-bit), 33 pins |
| Anwendung | EBK |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| ED097OC1 | E Ink | 9.7 | 1200×825 |
| ED097OC4 | E Ink | 9.7 | 1200×825 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC3 | LG Display | 9.7 | 2048×1536 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LQ097L1JY01A | SHARP | 9.7 | 2048×1536 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| A050VVN01.0 | AUO | 5.0 | 480×800 |
| A060SE02 V2 | AUO | 6.0 | 800×600 |
| A060SE02 V7 | AUO | 6.0 | 800×600 |
| EC080SC2 | E Ink | 8.0 | |
| ED050SC3 | E Ink | 5.0 | 800×600 |
| ED060SC8 | E Ink | 6.0 | 800×600 |
| ED060SCG | E Ink | 6.0 | 600×800 |
| LB050S01-RD01 | LG Display | 5.0 | 800×600 |
| LB060X02-RD01 | LG Display | 6.0 | 1024×768 |
| PQ 3Qi-01 | Pixel Qi | 10.1 | 1024×600 |
