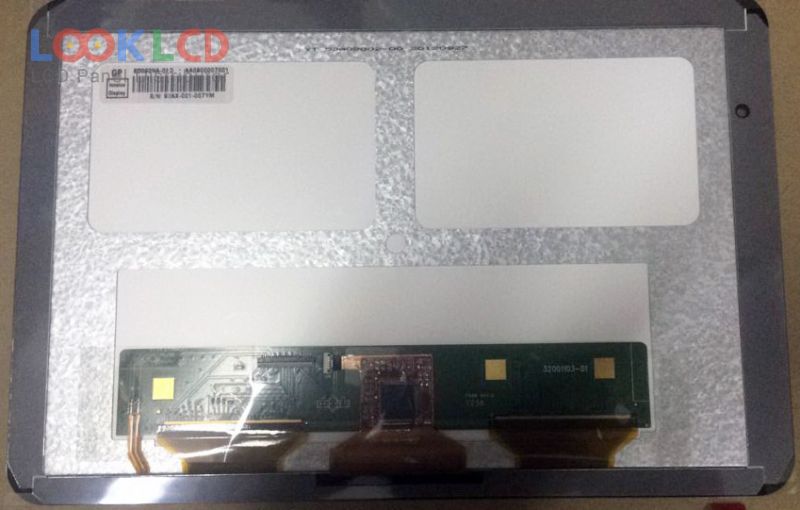

| Artikelnummer | ED090NA-01D |
| Marke | Innolux |
| Größe | 9.0 |
| Anwendung | PAD |
| Auflösung | 1280×800 |
| Komposition | Assembly |
| Helligkeit | 200 |
| CR | 700:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | ED090NA-01D |
| Plattentyp | a-Si TFT-LCD , Assembly |
| Panelgröße | 9.0 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| aktiver Bereich | 193.92×121.2 mm |
| Umriss | 235.12×156.4×7.84 mm |
| Oberfläche | Hard coating (7H) |
| Helligkeit | 200 cd/m² (Typ.) |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| Blickwinkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 51 pins |
| Eingangsspannung | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Anwendung | PAD |
