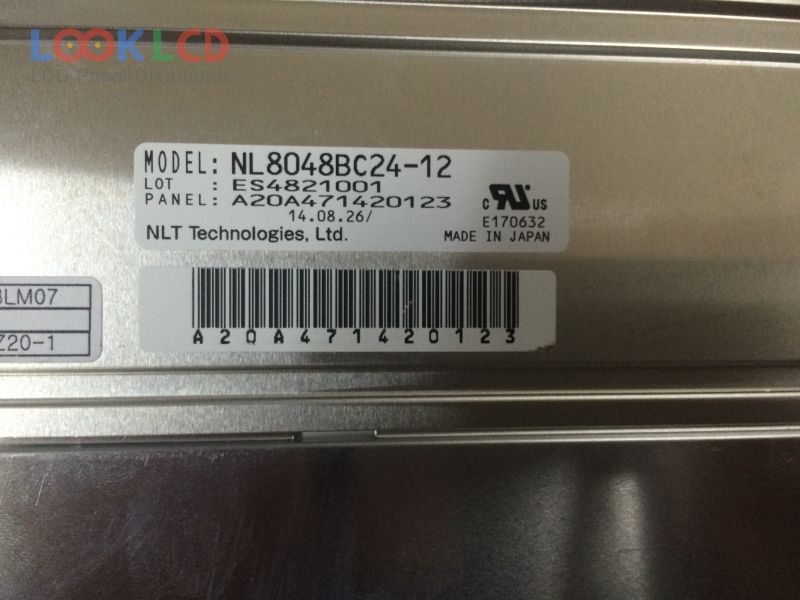

| Artikelnummer | NL8048BC24-12 |
| Marke | NLT |
| Größe | 9.0 |
| Anwendung | IA |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 900:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL8048BC24-12 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 9.0 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 196.8×118.08 mm |
| Umriss | 220.5×136.5×8.7 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 900:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| Reaktionszeit | 3/15 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3 stringsWLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6/8-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
