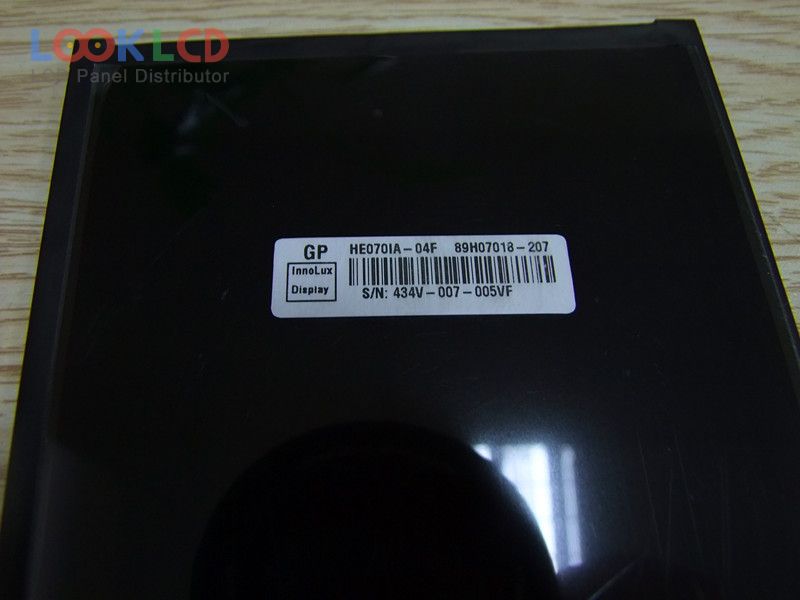

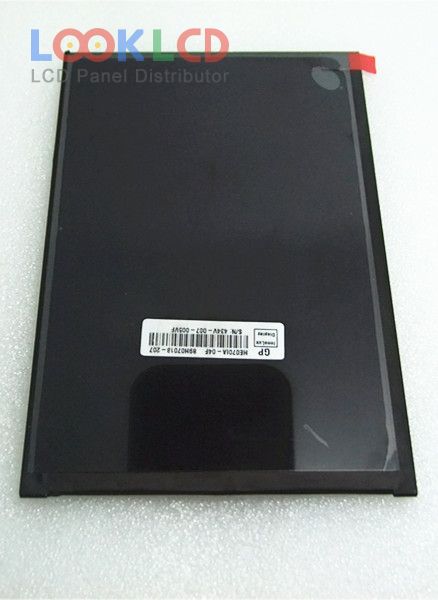

| Artikelnummer | HE070IA-04F |
| Marke | Innolux |
| Größe | 7.0 |
| Anwendung | PAD |
| Auflösung | 800×1280 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | LVDS |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | HE070IA-04F |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×1280 , WXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 94.2×150.72 mm |
| Umriss | 101.5×159.52×0.82 mm |
| Oberfläche | Hard coating |
| Glastiefe | 0.25+0.25 mm |
| Durchlässigkeit | 4.96% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193160% |
| Reaktionszeit | 50 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| Anwendung | PAD |
