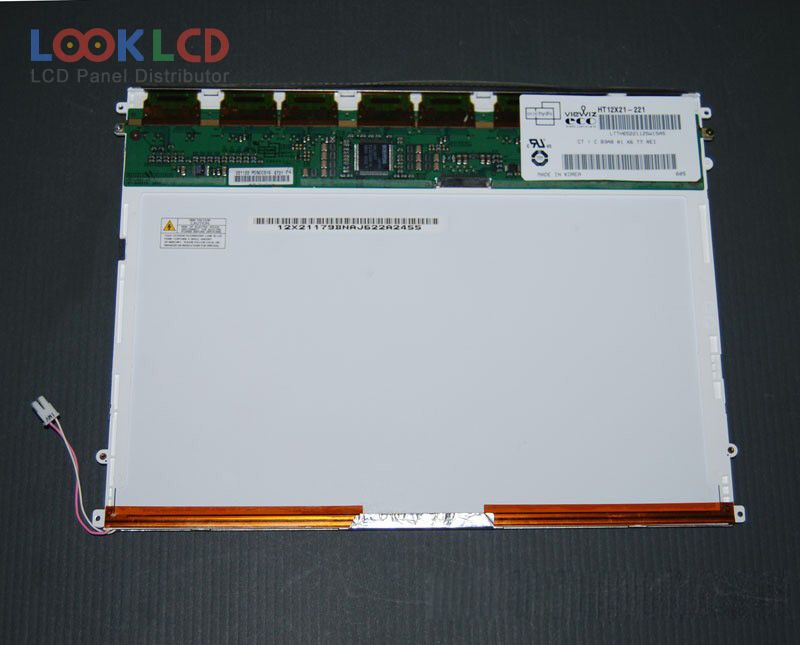

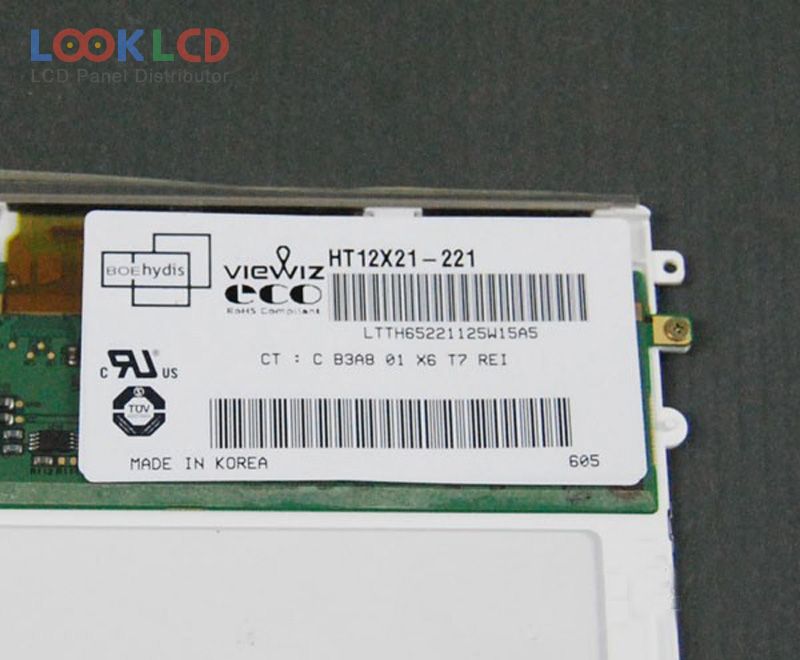

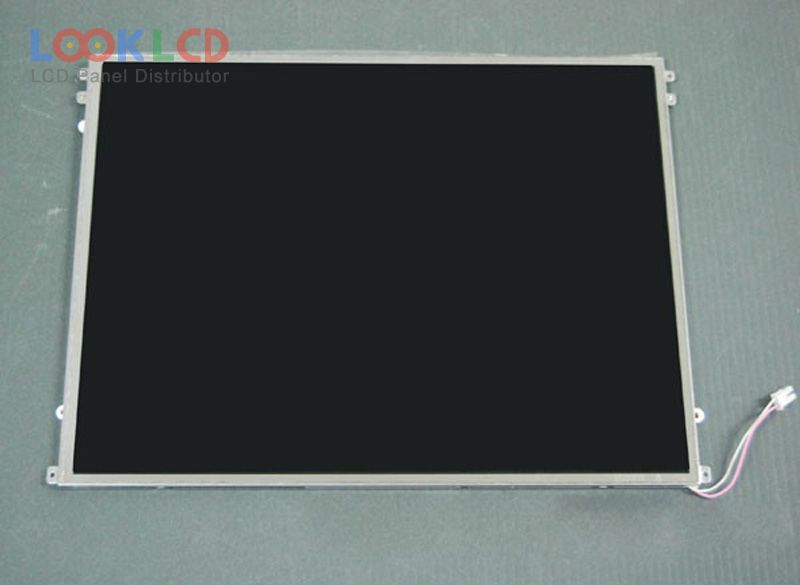

| Artikelnummer | HT12X21-221 |
| Marke | HYDIS |
| Größe | 12.1 |
| Anwendung | PAD |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 180 |
| CR | 450:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | BOE HYDIS |
| Panel-Modell | HT12X21-221 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.1 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | AFFS, Normally Black, Transmissive |
| aktiver Bereich | 245.76×184.32 mm |
| Umriss | 270×199×7 mm |
| Oberfläche | Antiglare (Haze 25%), Hard coating (3H) |
| Helligkeit | 180 cd/m² (Typ.) |
| Kontrastverhältnis | 450:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193140% |
| Reaktionszeit | 40 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
| 121SVA0501-2 | SANYO | 12.1 | 800×600 |
| B121EW10 V0 | AUO | 12.1 | 1280×800 |
| FLC31SVC6S-17 | Fujitsu | 12.1 | 800×600 |
| HT12X12-100 | HYDIS | 12.1 | 1024×768 |
| HT12X21-220 | HYDIS | 12.1 | 1024×768 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HT12X21-230 | HYDIS | 12.1 | 1024×768 |
| HT12X21-240 | HYDIS | 12.1 | 1024×768 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
