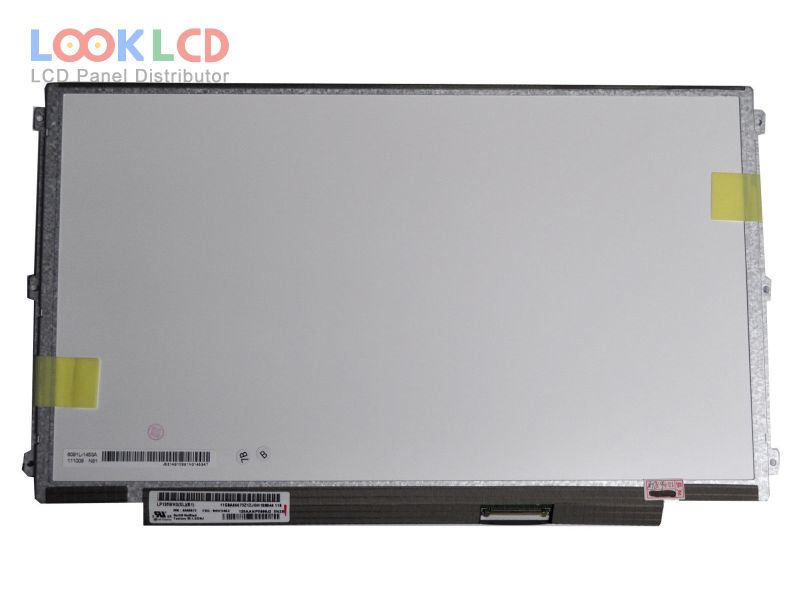

| Artikelnummer | LP125WH2-SLB1 |
| Marke | LG Display |
| Größe | 12.5 |
| Anwendung | PAD |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP125WH2-SLB1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.5 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 275.59×154.94 mm |
| Umriss | 300.4×180.9×3.7 mm |
| Oberfläche | Antiglare |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
