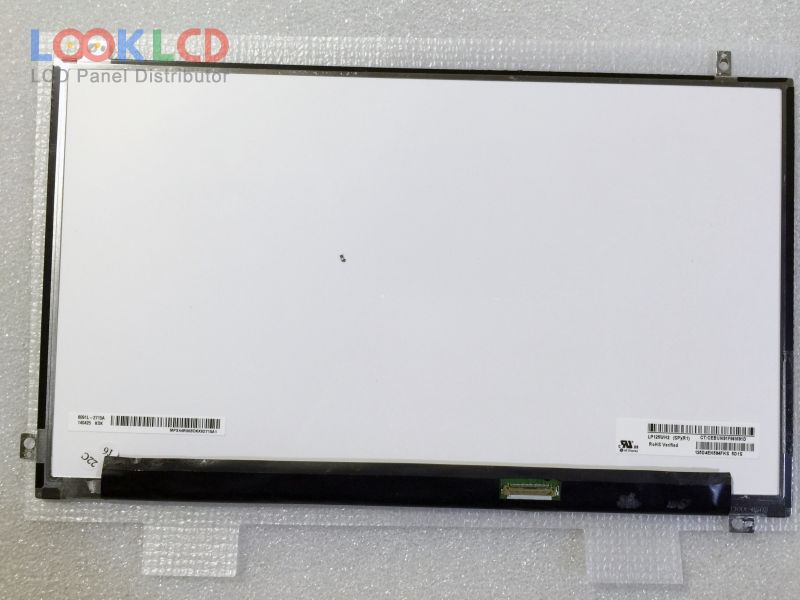

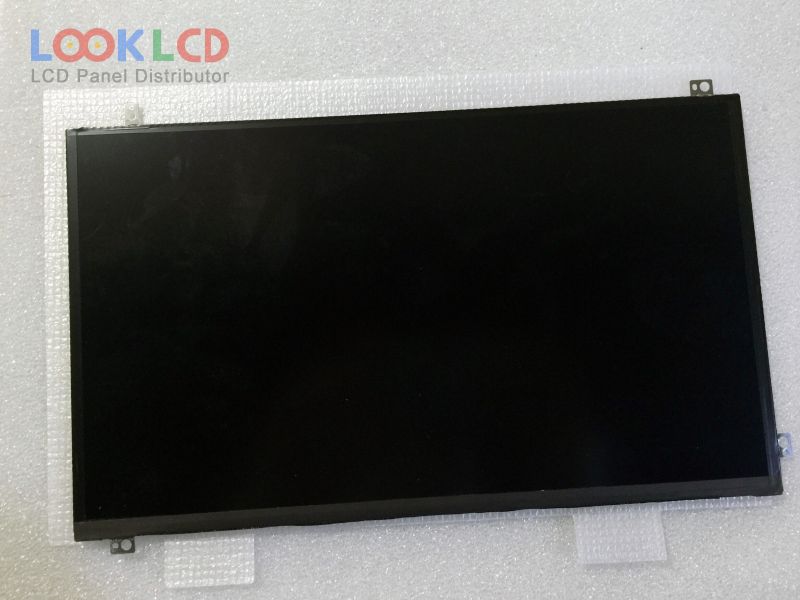

| Artikelnummer | LP125WH2-SPR1 |
| Marke | LG Display |
| Größe | 12.5 |
| Anwendung | PAD |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | eDP |
| Panel-Marke | LG Display |
| Panel-Modell | LP125WH2-SPR1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 12.5 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | AH-IPS, Normally Black, Transmissive |
| aktiver Bereich | 275.59×154.94 mm |
| Oberfläche | |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Min.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | eDP (1 Lane) |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
| LP125WF1-SPA2 | LG Display | 12.5 | 1920×1080 |
| LP125WF2-SPB1 | LG Display | 12.5 | 1920×1080 |
| LP125WF2-SPB3 | LG Display | 12.5 | 1920×1080 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SLT2 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SPR1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLD1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLE1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLFA | LG Display | 12.5 | 1366×768 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| HE101NA-02C | Innolux | 10.1 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HX121WX1-100 | HYDIS | 12.1 | 1280×800 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
