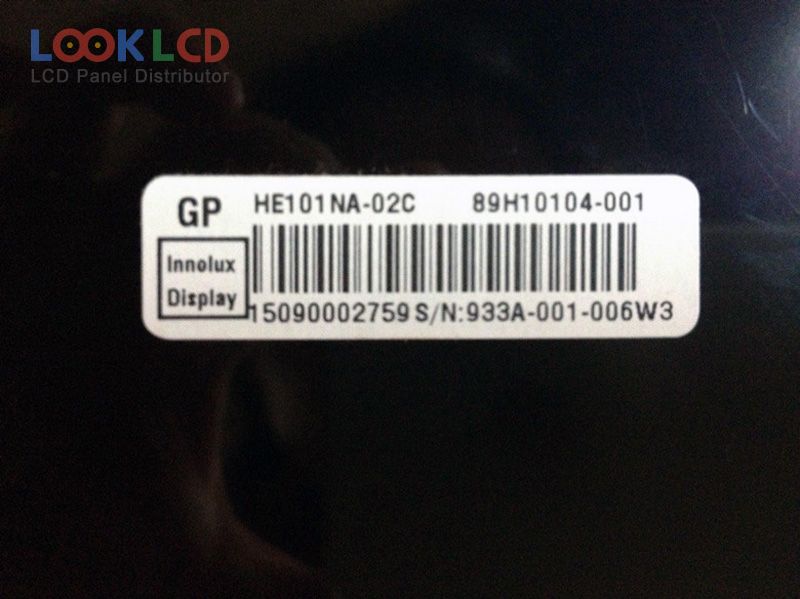

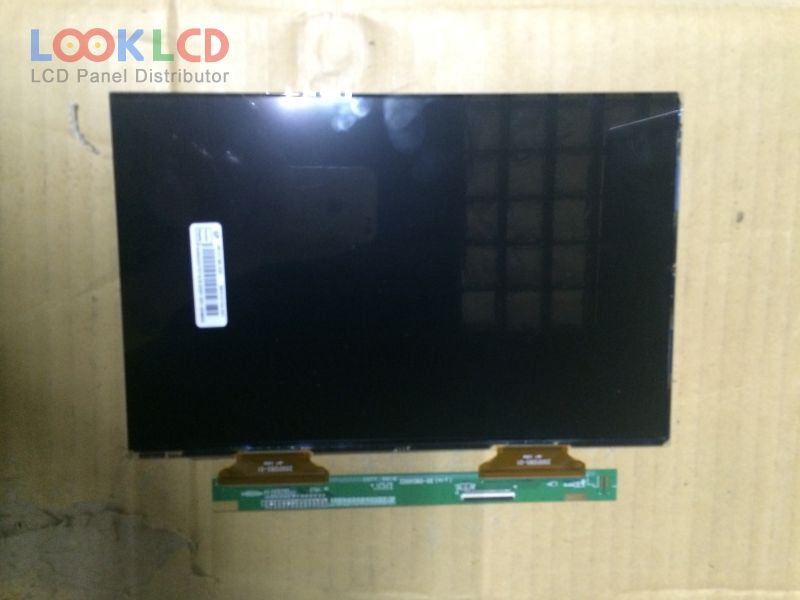

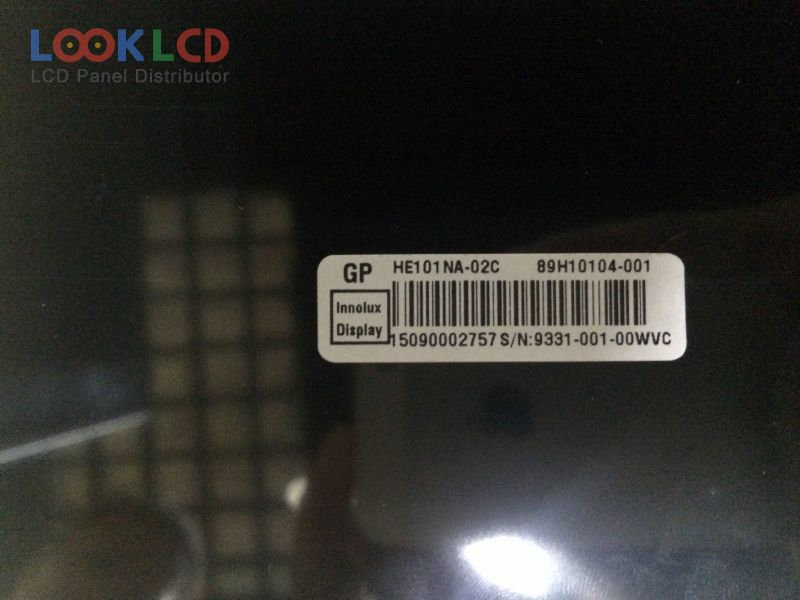

| Artikelnummer | HE101NA-02C |
| Marke | Innolux |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1280×800 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 700:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | TTL |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | HE101NA-02C |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 10.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 216.96×135.6 mm |
| Umriss | 224.21×145×1.43 mm |
| Oberfläche | Glare (Haze 0%) |
| Glastiefe | 0.50+0.50 mm |
| Kontrastverhältnis | 700:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 10/20 (Typ.)(Tr/Td) |
| Blickwinkel | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Anwendung | PAD |
