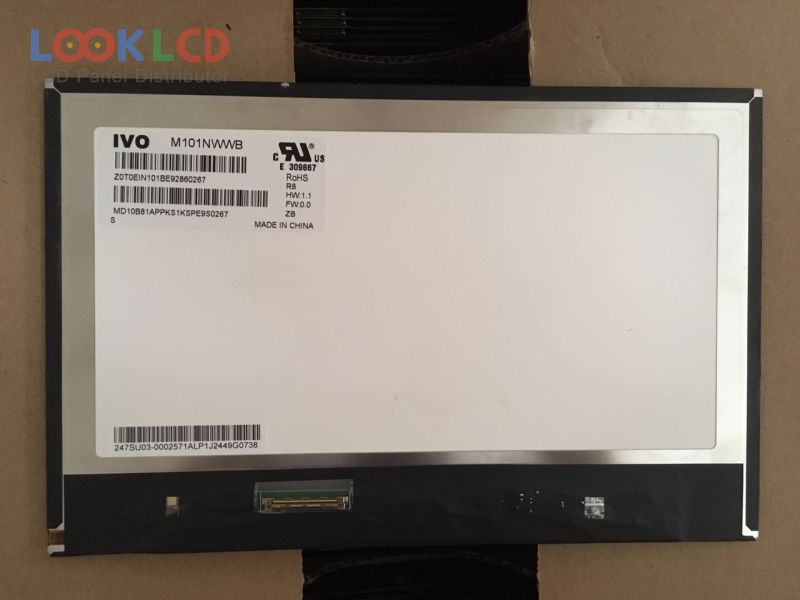

| Artikelnummer | M101NWWB R8 |
| Marke | IVO |
| Größe | 10.1 |
| Anwendung | PAD |
| Auflösung | 1280×800 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | LVDS |
| Panel-Marke | IVO |
| Panel-Modell | M101NWWB R8 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.1 inch |
| Auflösung | 1280(RGB)×800 , WXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 216.96×135.6 mm |
| Umriss | 229.46×149.1×4.56 mm |
| Oberfläche | Glare (Haze 0%), Hard coating |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193145% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PAD |
