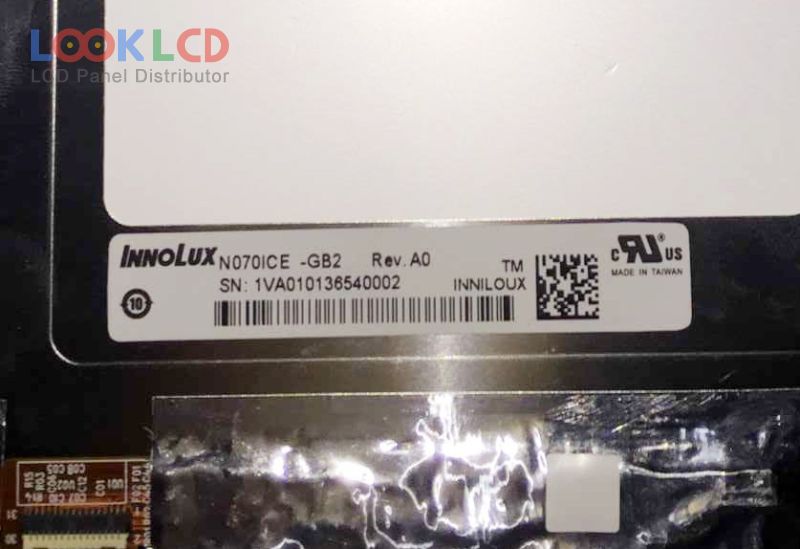

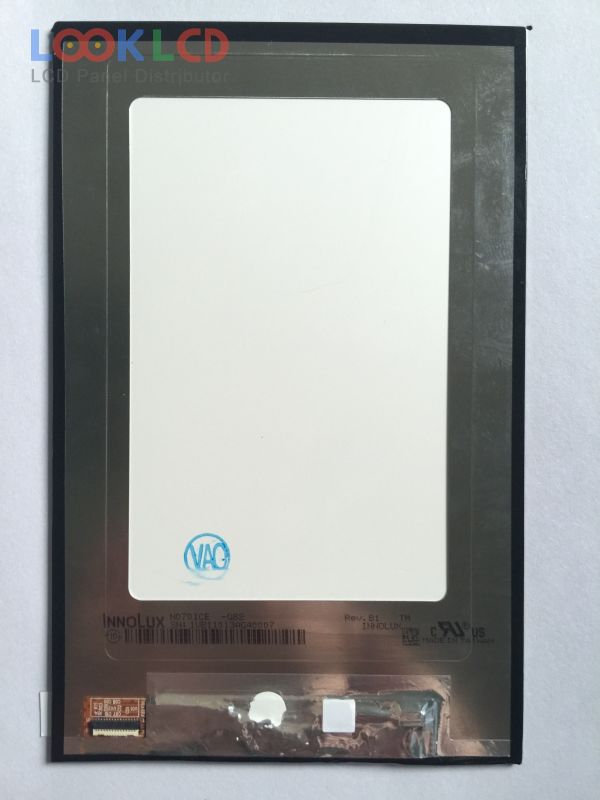

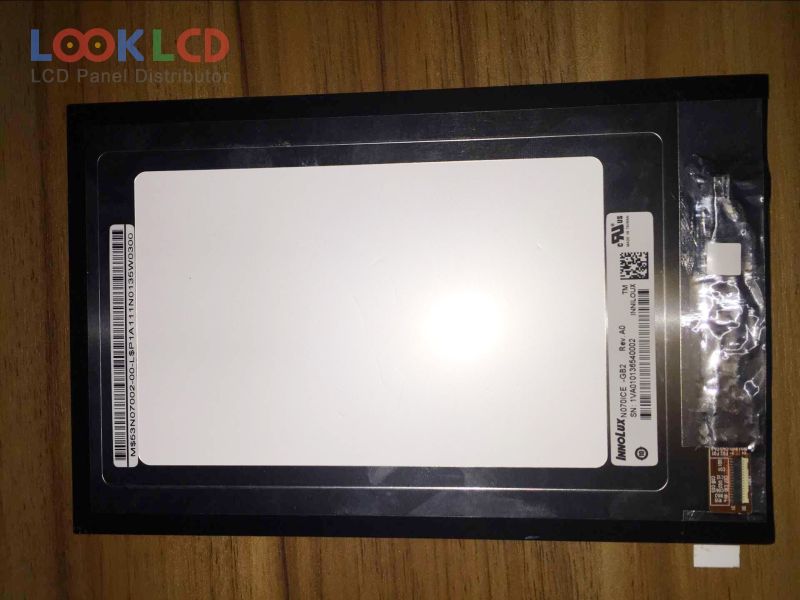

| Artikelnummer | N070ICE-GB2 |
| Marke | Innolux |
| Größe | 7.0 |
| Anwendung | PAD |
| Auflösung | 800×1280 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | INNOLUX |
| Panel-Modell | N070ICE-GB2 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 800(RGB)×1280 , WXGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 94.2×150.72 mm |
| Umriss | 103.5×162.15×3.6 mm |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 14/11 (Typ.)(Tr/Td) |
| Blickwinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S3PWLEDWithout Driver |
| Signalschnittstelle | MIPI (4 data lanes), 31 pins |
| Eingangsspannung | 1.8/3.3V (Typ.)(VDDI/VCI) |
| Anwendung | PAD |
