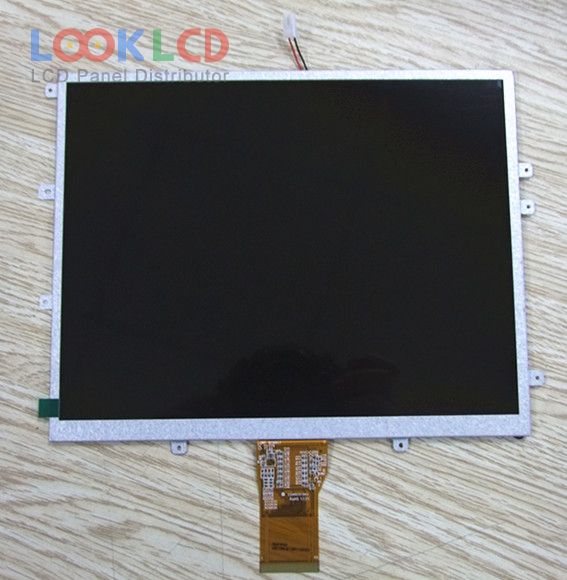

| Artikelnummer | TM097TDH01 |
| Marke | Tianma |
| Größe | 9.7 |
| Anwendung | PAD |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 500:1 |
| Farben | 262K/16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AVIC |
| Panel-Modell | TM097TDH01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 9.7 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 196.608×147.456 mm |
| Umriss | 210.2×166.2×3.96 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| Reaktionszeit | 20 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S6PWLEDWithout Driver |

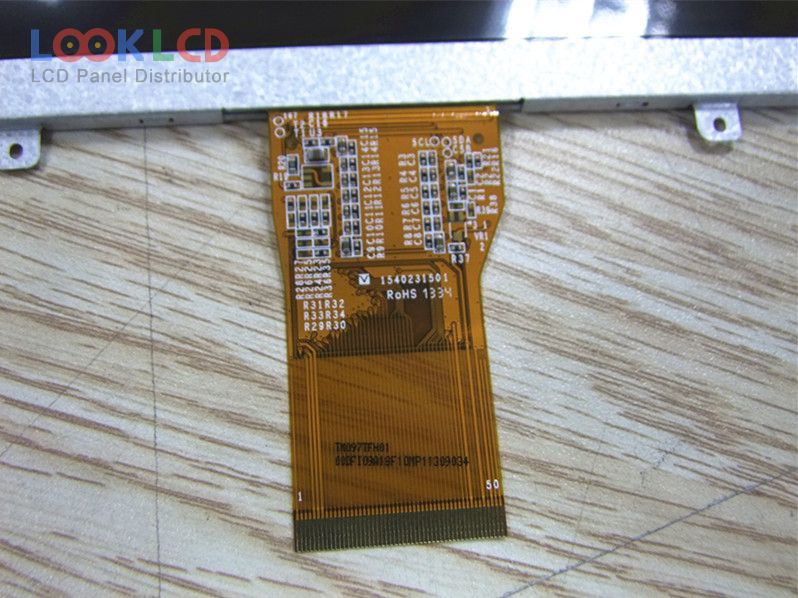

| Signalschnittstelle | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| Eingangsspannung | 3.3/12.5/22.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Anwendung | PAD |
