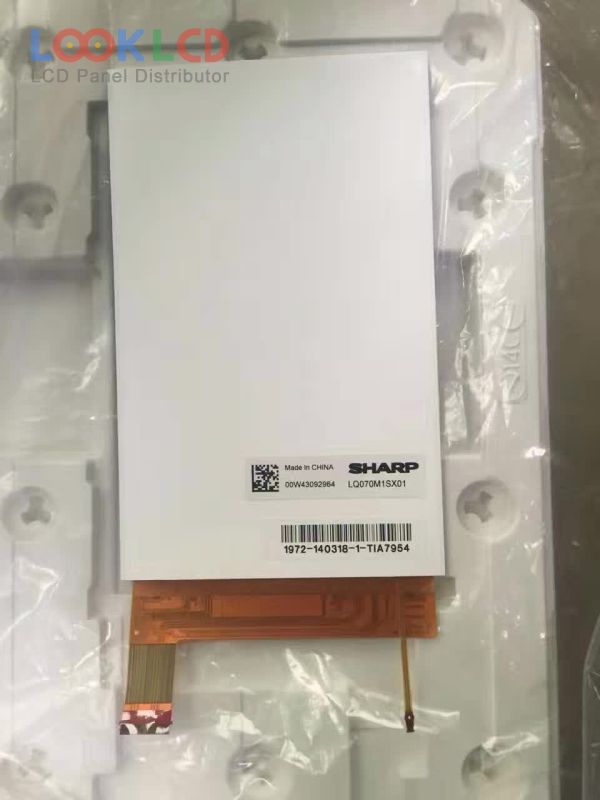

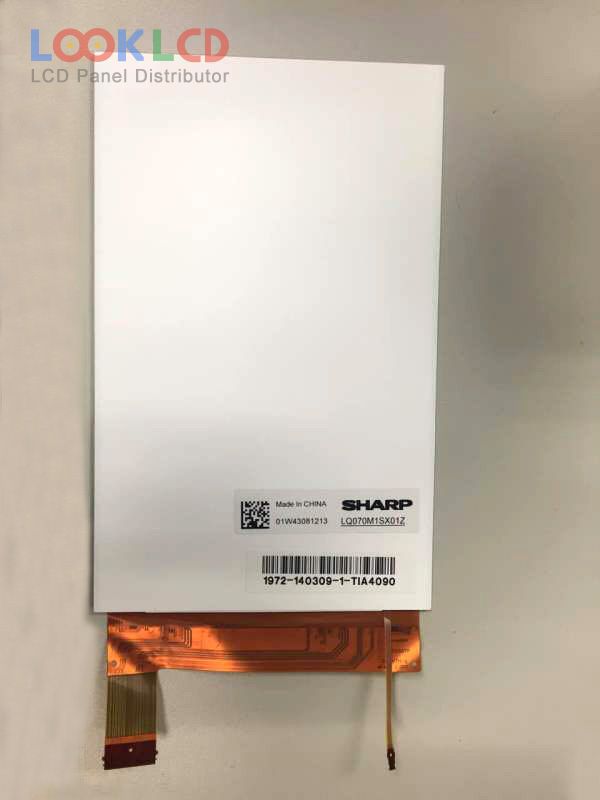

| Artikelnummer | LQ070M1SX01 |
| Marke | SHARP |
| Größe | 7.0 |
| Anwendung | PAD |
| Auflösung | 1200×1920 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 2000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | SHARP |
| Panel-Modell | LQ070M1SX01 |
| Plattentyp | IGZO TFT-LCD , LCM |
| Panelgröße | 7.0 inch |
| Auflösung | 1200(RGB)×1920 , WUXGA |
| Anzeigemodus | ASV, Normally Black, Transmissive |
| aktiver Bereich | 94.5×151.2 mm |
| Umriss | 99.7×159.85×1.925 mm |
| Oberfläche | Clear, Hard coating |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 2000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 9/13 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 9S2PWLEDWithout Driver |
| Signalschnittstelle | MIPI (2 data lanes), 71 pins |
| Eingangsspannung | 1.8/3.0/5.5/-5.5V (Typ.)(VDDIO/VDD/VSP/VSN) |
| Anwendung | PAD |
