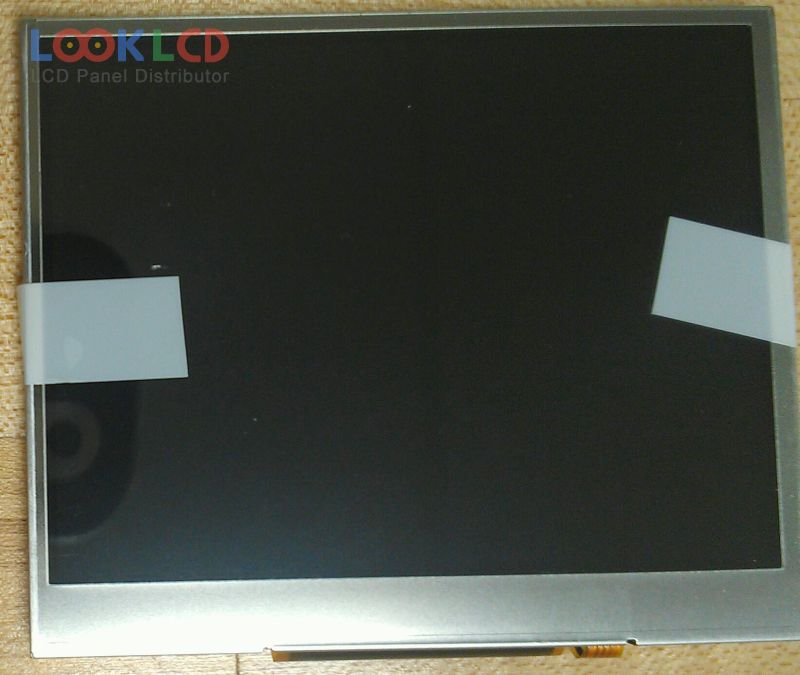

| Artikelnummer | TCG035QVLPDANN-GN50 |
| Marke | Kyocera |
| Größe | 3.5 |
| Anwendung | IA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 1000 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | Kyocera |
| Panel-Modell | TCG035QVLPDANN-GN50 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.56×52.92 mm |
| Umriss | 76.9×63.9×5.1 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 1000 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 8/22 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 stringsWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
| AMS347FF02 | Samsung | 3.5 | 360×640 |
| EL160.80.50 IN | Lumineq | 3.5 | 160×80 |
| H345VW01 V0 | AUO | 3.5 | 480×800 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LS035Y8DX02A | SHARP | 3.5 | 480×800 |
| LTV350QV-F05 | Samsung | 3.5 | 320×240 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| TCG035QVLPDANN-GN50 | Kyocera | 3.5 | 320×240 |
| UMSH-8065MD-11T | Other | 3.5 | 320×240 |
| AA065VE01 | Mitsubishi | 6.5 | 640×480 |
| COM70T7M17ZLC | ORTUSTECH | 7.0 | 800×480 |
| DLC0650BMG | Other | 6.5 | 640×480 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| KCB084SV1AC-G40 | Kyocera | 8.4 | 800×600 |
| LM-CG53-22NDK | SANYO | 10.4 | 640×480 |
| LQ150X1LGB1 | SHARP | 15.0 | 1024×768 |
| LQ190E1LW01 | SHARP | 19.0 | 1280×1024 |
| P50AN3 | E Ink | 5.0 | 320×234 |
