| Artikelnummer | NL128102AC28-07 |
| Marke | NLT |
| Größe | 18.1 |
| Anwendung | IA |
| Auflösung | 1280×1024 |
| Komposition | LCM |
| Helligkeit | 240 |
| CR | 300:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |

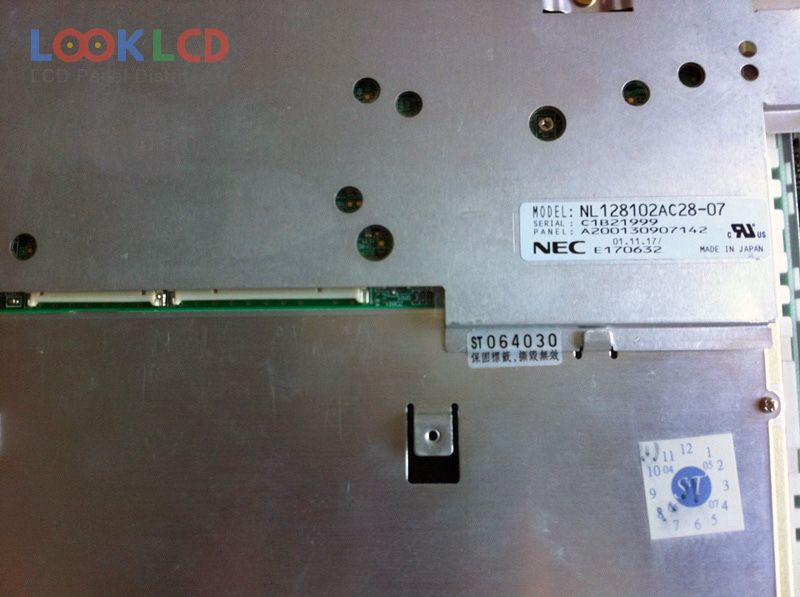

| Panel-Modell | NL128102AC28-07 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 18.1 inch |
| Auflösung | 1280(RGB)×1024 , SXGA |
| Anzeigemodus | A-SFT, Normally Black, Transmissive |
| aktiver Bereich | 359.04×287.232 mm |
| Umriss | 389×317.2×31.3 mm |
| Oberfläche | Hard coating (2H), Antireflection |
| Helligkeit | 240 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193160% |
| Reaktionszeit | 15/14 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 12 pcsCCFLEmbedded (Inverter) |
| Signalschnittstelle | LVDS (2 ch, 8-bit), 50 pins |
| Eingangsspannung | 12.0V (Typ.) |
| Anwendung | IA |
