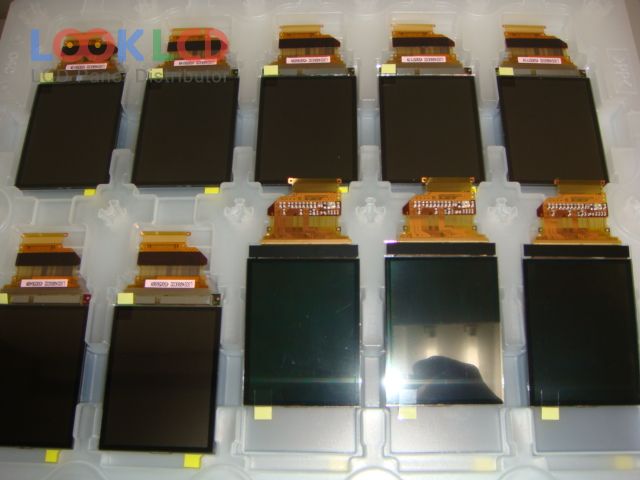

| Artikelnummer | LS024Q8UC02 |
| Marke | SHARP |
| Größe | 2.4 |
| Anwendung | MPH |
| Auflösung | 240×320 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 90:1 |
| Farben | 65K |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | CPU |
| Panel-Marke | SHARP |
| Panel-Modell | LS024Q8UC02 |
| Plattentyp | CG-Silicon , CELL |
| Panelgröße | 2.4 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 36.72×48.96 mm |
| Umriss | 41.7×83.65×1.75 mm |
| Oberfläche | Hard coating |
| Durchlässigkeit | 8.2% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 90:1 (Typ.)(Transmissive)7:1 (Typ.)(Reflective) |
| Farben anzeigen | 65K , CIE193159% |
| Reaktionszeit | 60 (Typ.)(Tr+Td) |
| Blickwinkel | 35/35/40/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signalschnittstelle | CPU, 36 pins |
| Eingangsspannung | 2.85V (Typ.) |
| Anwendung | MPH |
