| Artikelnummer | LP156WH1-TLA3 |
| Marke | LG Display |
| Größe | 15.6 |
| Anwendung | NBPC |
| Auflösung | 1366×768 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | LG Display |
| Panel-Modell | LP156WH1-TLA3 10 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 15.6 inch |
| Auflösung | 1366(RGB)×768 , WXGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 344.232×193.536 mm |
| Umriss | 359.3×209.5×6.5 mm |
| Formstil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Min.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 16 (Typ.)(Tr+Td) |
| Blickwinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |

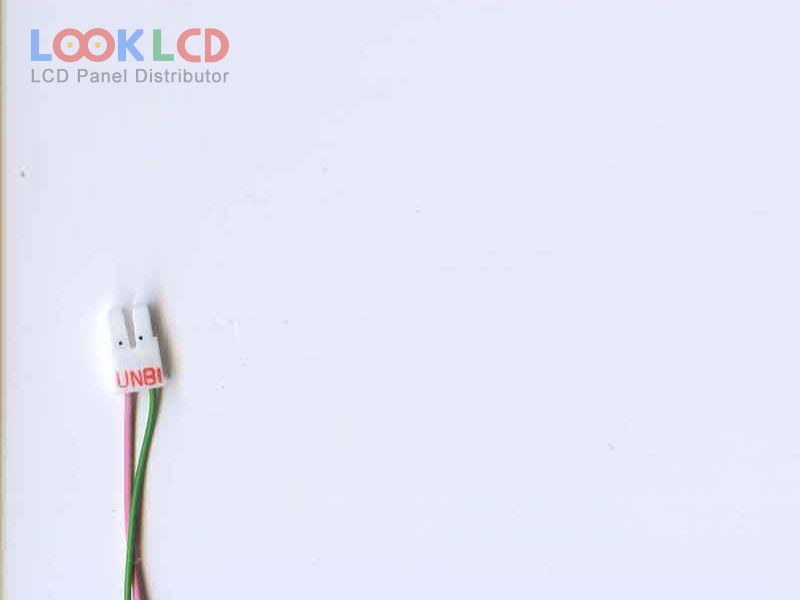

| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 30 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | NBPC |
| LP156WD1-TLB1 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLA1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLB1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LP156WHA-SLA2 | LG Display | 15.6 | 1366×768 |
| B133EW03 V1 | AUO | 13.3 | 1280×800 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| HSD121PHW1-A01 | HannStar | 12.1 | 1366×768 |
| HV150UX1-101 | HYDIS | 15.0 | 1600×1200 |
| LP156WD1-TLD3 | LG Display | 15.6 | 1600×900 |
| LP156WH8-TLA1 | LG Display | 15.6 | 1366×768 |
| LT121SU-121 | Samsung | 12.1 | 800×600 |
| LTN156AT15-W01 | Samsung | 15.6 | 1366×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
| TX39D80VC1GAA | KOE | 15.4 | 1280×800 |
